Model 56664 4-Channel 200 MHz A/D with DDC, VITA 49.0, Virtex-6 FPGA - AMC

This product is in the Inactive Life Cycle. Please contact Pentek for additional information.

Block Diagram

Datasheet

Manuals

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Complete radar and software radio interface solution
  • PCIe output supports VITA 49.0 VITA Radio Transport (VRT) Standard
  • Supports Xilinx Virtex-6 LXT and SXT FPGAs
  • Four 200 MHz 16-bit A/Ds
  • Four multiband DDCs
  • Multiboard programmable beamformer
  • Up to 2 GB of DDR3 SDRAM or 32 MB of QDRII+ SRAM
  • Sample clock synchronization to an external system reference
  • LVPECL clock sync bus for multimodule synchronization
  • PCI Express (Gen. 1 & 2) interface up to x8 wide
  • AMC.1 compliant
  • IPMI 2.0 compliant Module Management Controller (MMC)
  • Optional front panel LVDS connections to the Virtex-6 FPGA for custom I/O



Model 56664

Cobalt Xilinx Virtex-6

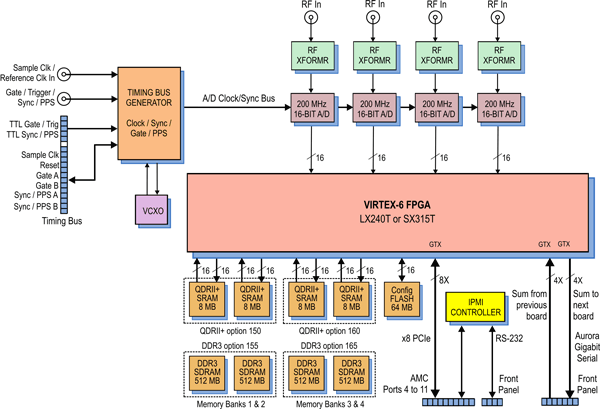

Model 56664 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram
