Model 78664 4-Channel 200 MHz A/D with DDC, VITA 49.0, Virtex-6 FPGA - PCIe

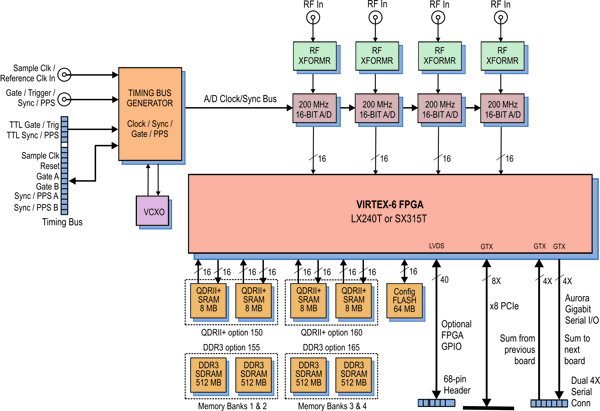

Block Diagram Datasheet Manuals Development Systems Literature Life Cycle Management Ordering & Warranty Catalogs

Complete radar and software radio interface solution Support VITA 49.0 VITA Radio Transport (VRT) Standard Supports Xilinx Virtex-6 LXT and SXT FPGAs Four 200 MHz 16-bit A/Ds Four multiband DDCs Multiboard programmable beamformer Up to 2 GB of DDR3 SDRAM or 32 MB of QDRII+ SRAM Sample clock synchronization to an external system reference LVPECL clock/sync bus for multimodule synchronization PCI Express (Gen. 1 & 2) interface up to x8 wide Optional LVDS connections to the Virtex-6 FPGA for custom I/O RoHS Compliant Lead-Free Version Available Synchronize up to eight modules with Model 7893 System Synchronization and Distribution Amplifier - PCIe Also available in the following form factors: Model 71664 - XMC Model 57664 - VPX 6U (single XMC) Model 58664 - VPX 6U (dual XMC) Model 52664 - VPX 3U (single XMC) Model 53664 - VPX 3U (single XMC with switch) Model 74664 - cPCI 6U (dual XMC) Model 72664 - cPCI 3U (single XMC) Model 73664 - cPCI 3U (single XMC) Model 56664 - AMC (single XMC) Please refer to the product datasheet for Installed FPGA IP Module details
