Model 72664 4-Channel 200 MHz A/D with DDC, VITA 49.0, Virtex-6 FPGA - 6U cPCI

This product is in the Inactive Life Cycle. Please contact Pentek for additional information.

Block Diagram

Datasheet

Manuals

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Complete radar and software radio interface solution
  • Support VITA 49.0 VITA Radio Transport (VRT) Standard
  • Support Xilinx Virtex-6 LXT and SXT FPGAs
  • Four 200 MHz 16-bit A/Ds
  • Four multiband DDCs (digital downconverters)
  • One multiboard programmable beamformer
  • Up to 2 GB of DDR3 SDRAM; or: 32 MB of QDRII+ SRAM
  • Sample clock synchronization to an external system reference
  • LVPECL clock/sync bus for multiboard synchronization



Model 72664

Cobalt Xilinx Virtex-6

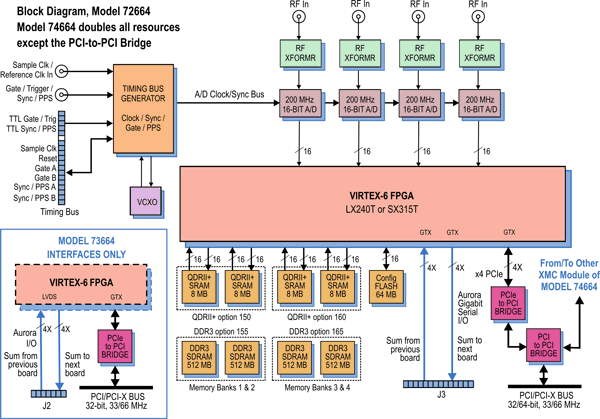

Model 72664 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
816.71660 User's Guide Model 4994A Option 166/66x/662/176/76x Linux ReadyFlow BSP for 7166x, 7176x 4.3 (5/9/2016)
