Model 78800 Kintex UltraScale FPGA Coprocessor - PCIe

Contact Pentek for availability.

Request a Quote

Block Diagram

Datasheet

Manuals

Software

Development Systems

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • High-performance co-processor platform
  • Supports Xilinx Kintex Ultrascale FPGAs
  • Front panel digital I/O can be used as a status and control or data interface
  • PCI Express (Gen. 1, 2 & 3) interface up to x8
  • VITA 42.0 XMC compatible with switched fabric interfaces
  • Optional LVDS and gigabit serial connections to the FPGA for custom I/O
  • Ruggedized and conduction-cooled versions available



Request a Quote

Model 78800

Jade Xilinx Kintex UltraScale FPGA Family Brochure
Jade Xilinx UltraScale

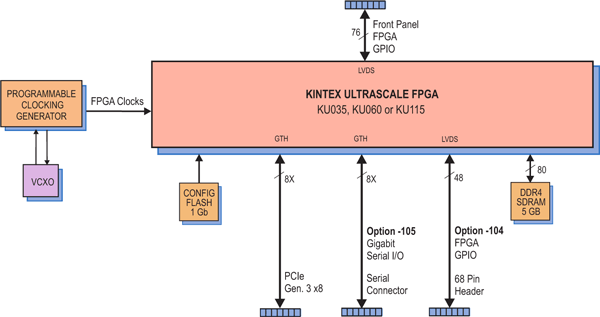

Model 78800 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram



Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

A complete set of user manuals is provided in HTML format. Access to detailed documentation of the IP Core modules and their programmable registers is only available in the HTML version of the operating manual. Instructions for getting the HTML version of the user manuals is provided in the User Manual Library document listed below.

Part No.
Type
Description
Revision/Date
Contact Pentek
For Manual
Model 4811 Navigator FDK (FPGA Design Kit) for Model 78800
Contact Pentek
For Manual
Model 4814 Navigator BSP (Board Support Package) for Linux for Model 78800
Contact Pentek
For Manual
Model 4815 Navigator BSP (Board Support Package) for Windows for Model 78800

Software Products - ( top )

Model
Option
Description
4811 800 Navigator FDK (FPGA Design Kit)
4814 800 Navigator BSP (Board Support Package) for Linux
4815 800 Navigator BSP (Board Support Package) for Windows
