Model 74800 Kintex UltraScale FPGA Coprocessor - 6U cPCI

This product is in the Inactive Life Cycle. Please contact Pentek for additional information.

Block Diagram

Datasheet

Manuals

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • High-performance co-processor platform
  • Supports Xilinx Kintex Ultrascale FPGAs
  • Front panel digital I/O can be used as a status and control or data interface
  • 10 GB of DDR4 SDRAM
  • Optional LVDS and gigabit serial connections to the FPGA for custom I/O
  • Ruggedized and conduction-cooled versions available

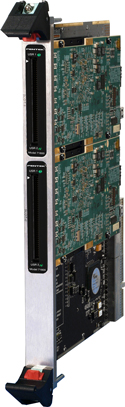

Model 74800

Jade Xilinx Kintex UltraScale FPGA Family Brochure
Jade Xilinx UltraScale


Model 74800 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

A complete set of user manuals is provided in HTML format. Access to detailed documentation of the IP Core modules and their programmable registers is only available in the HTML version of the operating manual. Instructions for getting the HTML version of the user manuals is provided in the User Manual Library document listed below.
