Model 71761 4-Channel 200 MHz A/D with DDC, Virtex-7 FPGA - XMC

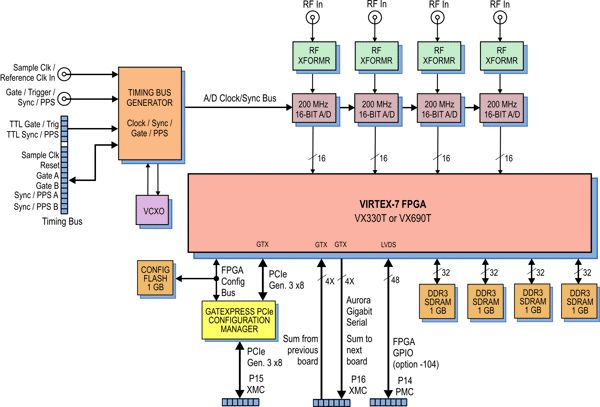

Request a Quote Block Diagram Datasheet Manuals Software Development Systems Literature Life Cycle Management Ordering & Warranty Catalogs

Complete radar and software radio interface solution Supports Xilinx Virtex-7 VXT FPGAs GateXpress supports dynamic FPGA reconfiguration across PCIe Four 200 MHz 16-bit A/Ds Four multiband DDCs (digital downconverters) Multiboard programmable beamformer 4 GB of DDR3 SDRAM Sample clock synchronization to an external system reference LVPECL clock/sync bus for multimodule synchronization PCI Express (Gen. 1, 2 & 3) interface up to x8 VITA 42.0 XMC compatible with switched fabric interfaces Optional LVDS connections to the Virtex-7 FPGA for custom I/O Supports GateXpress® FPGA-PCIe Configuration Manager Synchronize up to eight modules with Model 7893 System Synchronization and Distribution Amplifier - PCIe Also available in the following form factors: Model 57761 - VPX 6U (single XMC) Model 58761 - VPX 6U (dual XMC) Model 52761 - VPX 3U (single XMC) Model 53761 - VPX 3U (single XMC with switch) Model 78761 - PCIe (single XMC) Model 72761 - cPCI 6U (single XMC) Model 74761 - cPCI 6U (dual XMC) Model 73761 - cPCI 3U (single XMC) Model 56761 - AMC (single XMC) See comparable Jade Xilinx Kintex UltraScale FPGA Module: Model 71861 Please refer to the product datasheet for Installed FPGA IP Module details

Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.
