Home > Products > Model 58761

Your Pentek With YourPentek, you can be notified when new documentation and other updated product information is available for the Model 58761. Please login or register to manage your profile.

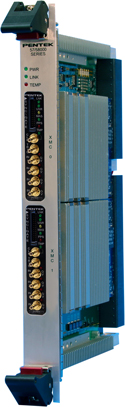

Model 58761 8-Channel 200 MHz A/D with DDC, Virtex-7 FPGA - 6U VPX

Request a Quote

Block Diagram

Datasheet

Manuals

Software

Development Systems

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Supports Xilinx Virtex-7 VXT FPGAs
  • GateXpress supports dynamic FPGA reconfiguration across PCIe
  • Four or eight 200 MHz 16-bit A/Ds
  • Four or eight multiband DDCs
  • Multiboard programmable beamformer
  • 4 or 8 GB of DDR3 SDRAM
  • PCI Express (Gen. 1, 2 & 3) interface up to x8
  • Sample clock synchronization to an external system reference
  • LVPECL clock/sync bus formultimodule synchronization
  • Optional LVDS connections to the Virtex-7 FPGA for custom I/O
  • Ruggedized and conduction-cooled versions available
  • See comparable Jade Xilinx Kintex UltraScale FPGA Module: Model 58861



Request a Quote

Model 58761

Onyx Xilinx Virtex-7


Model 58761 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram



Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
800.71760 Operating Manual Model 71760 4-Channel A/D Onyx Family XMC Module 1.11 (7/6/2015)
800.71761 Addendum Model 71761 4-Channel A/D, with four DDCs, Onyx Family XMC Module 1.3 (7/7/2015)
801.71760 Programmer's Reference ReadyFlow Board Support Library: 7176x, 5973/7070-316, 5973/7070-317, 3316 3.3 (9/19/2016)
809.7x760 Supplemental Manual Vendor Data Sheets for Model 7x760 Series Operating Manuals 1.1 (9/12/2023)
815.71660 User's Guide Model 4995A Option 166/661/662/176 Windows ReadyFlow BSP for 7166x, 7176x 4.3A (9/12/2023)
816.71660 User's Guide Model 4994A Option 166/66x/662/176/76x Linux ReadyFlow BSP for 7166x, 7176x 4.3 (5/9/2016)
Contact Pentek
For Manual
Model 4953 GateFlow FPGA Design Kit for Pentek Modules for Model 58761
Contact Pentek
For Manual
Model 4996A ReadyFlow Board Support Packages (BSPs) for VxWorks for Model 58761

Software Products - ( top )

Model
Option
Description
4953 761 GateFlow FPGA Design Kit for Pentek Modules
4994A 761 ReadyFlow Board Support Packages (BSPs) for Linux
4995A 761 ReadyFlow Board Support Packages (BSPs) for Windows
4996A 761 ReadyFlow Board Support Packages (BSPs) for VxWorks
