Model 71141 1-Ch. 6.4 GHz or 2-Ch. 3.2 GHz A/D, 2-Ch 6.4 GHz D/A Kintex UltraScale - XMC

Request a Quote

Block Diagram

Datasheet

Manuals

Software

Development Systems

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Ideal radar and software radio interface solution
  • Supports Xilinx Kintex UltraScale FPGAs
  • Supports VITA-49.2 VITA Radio Transport standard
  • One-channel mode with 6.4 GHz, 12-bit A/D
  • Two-channel mode with 3.2 GHz, 12-bit A/Ds
  • Programmable DDCs (Digital Downconverters)
  • Two 6.4 GHz, 14-bit D/As
  • Programmable DUCs (Digital Upconverters)
  • 5 GB of DDR4 SDRAM
  • µSync clock/sync bus for multimodule synchronization
  • PCI Express (Gen. 1, 2 & 3) interface up to x8
  • VITA 42.0 XMC compatible with switched fabric interfaces
  • Optional LVDS and gigabit serial connections to the FPGA for custom I/O
  • Ruggedized and conduction cooled versions available



Request a Quote

Model 71141

Jade Xilinx Kintex UltraScale FPGA Family Brochure
Jade Xilinx UltraScale

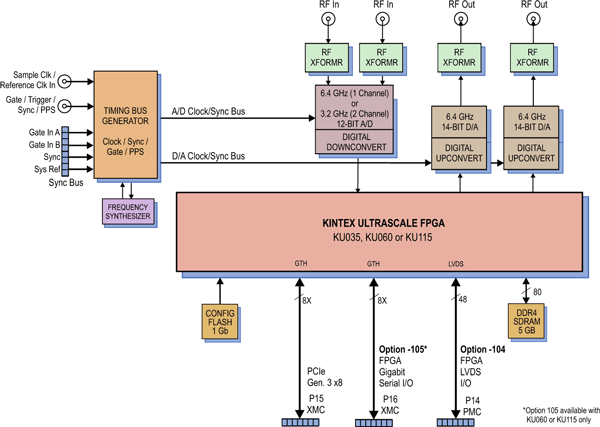

Model 71141 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram



Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

A complete set of user manuals is provided in HTML format. Access to detailed documentation of the IP Core modules and their programmable registers is only available in the HTML version of the operating manual. Instructions for getting the HTML version of the user manuals is provided in the User Manual Library document listed below.

Part No.
Type
Description
Revision/Date
800.48145 User's Guide Navigator BSP for Jade User's Guide - Windows & Linux 4.2 (9/29/2023)
800.71141 Operating Manual 1Ch 6.4 GHz A/D or 2Ch 3.2 GHz A/D, 2-Ch 6.4 GHz D/A Jade XMC Module 1.2 (8/2/2018)
820.71141 User's Guide Getting Started Guide for Model 71141 1.0 (4/19/2018)
821.7114A Release Note User Manual Library for Model 71141A 3.0 (2/27/2023)
822.71141 Release Note Model 71141 FDK Revision Histories 4.0 (6/8/2023)

Software Products - ( top )

Model
Option
Description
4811 141 Navigator FDK (FPGA Design Kit)
4814 141 Navigator BSP (Board Support Package) for Linux
4815 141 Navigator BSP (Board Support Package) for Windows
