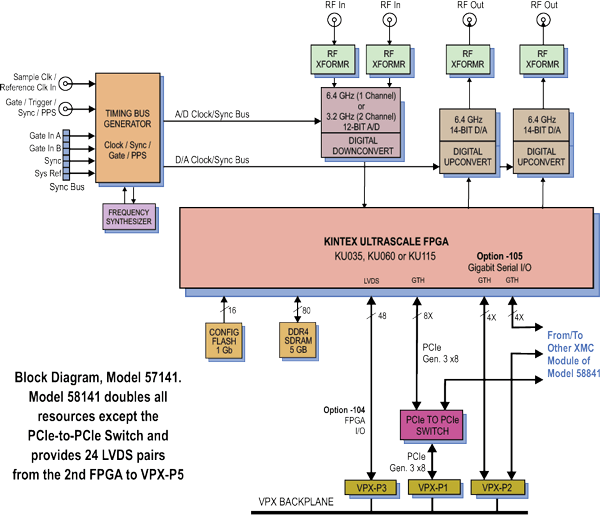

Model 57141 1-Ch. 6.4 GHz or 2-Ch. 3.2 GHz A/D, 2-Ch 6.4 GHz D/A Kintex UltraScale - 6U VPX

Request a Quote Block Diagram Datasheet Manuals Software Development Systems Literature Life Cycle Management Ordering & Warranty Catalogs

Jade Xilinx Kintex UltraScale FPGA Products and Navigator Design Suite Software Video Jade Xilinx Kintex UltraScale FPGA Family Brochure Ideal radar and software radio interface solution Supports Xilinx Kintex UltraScale FPGAs Supports VITA-49.2 VITA Radio Transport standard One-channel mode with 6.4 GHz, 12-bit A/D Two-channel mode with 3.2 GHz, 12-bit A/D Programmable DDCs (Digital Downconverters) Two 6.4 GHz, 14-bit D/As Programmable DUCs (Digital Upconverters) 5 GB of DDR4 SDRAM µSync clock/sync bus for multimodule synchronization PCI Express (Gen. 1, 2 & 3) interface up to x8 Optional LVDS and gigabit serial connections to the FPGA for custom I/O Compatible with several VITA standards including: VITA-46, VITA-48 and VITA-65 (OpenVPX™ System Specification) Ruggedized and conduction-cooled versions available Synchronize up to twelve modules with Model 9192 System Synchronization and Distribution Amplifier- 1U Rack-mount Also available in the following form factors: Model 71141 - XMC Model 58141 - VPX 6U (dual XMC) Model 52141 - VPX 3U (single XMC) Model 53141 - VPX 3U (single XMC with switch) Model 78141 - PCIe (single XMC) Model 72141 - cPCI 6U (single XMC) Model 74141 - cPCI 6U (dual XMC) Model 73141 - cPCI 3U (single XMC) Model 56141 - AMC (single XMC) Please refer to the product datasheet for Installed FPGA IP Module details

Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

A complete set of user manuals is provided in HTML format. Access to detailed documentation of the IP Core modules and their programmable registers is only available in the HTML version of the operating manual. Instructions for getting the HTML version of the user manuals is provided in the User Manual Library document listed below.
