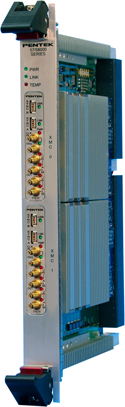

Model 58670 8-Channel 1.25 GHz, 16-bit D/A with Virtex-6 FPGA - 6U VPX

Please contact Pentek for availability.

Block Diagram

Datasheet

Manuals

Development Systems

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Complete radar and software radio interface solution
  • Supports Xilinx Virtex-6 LXT and SXT FPGAs
  • Eight 1.25 GHz 16-bit D/As
  • Eight digital upconverters
  • Programmable output levels
  • 250 MHz max. output bandwidth
  • 4 GB of DDR3 SDRAM
  • PCI Express (Gen. 1 & 2) interface up to x8
  • Sample clock synchronization to an external system reference
  • Quad µSync clock/sync bus for multiboard synchronization
  • Optional user-configurable gigabit serial interface
  • Optional LVDS connections to the Virtex-6 FPGA for custom I/O
  • Ruggedized and conduction-cooled versions available



Model 58670

Cobalt Xilinx Virtex-6

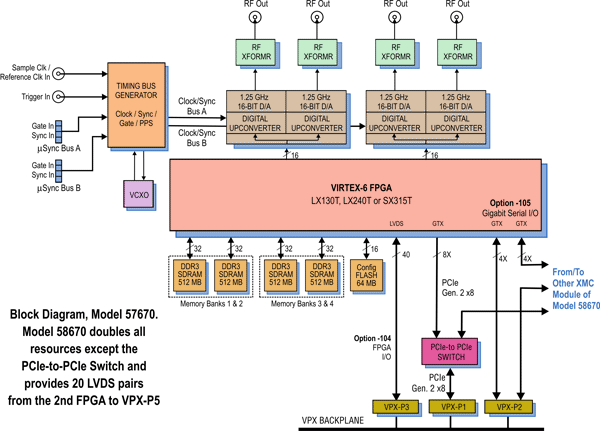

Model 58670 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
801.71670 Programmer's Reference ReadyFlow Board Support Libraries for Models 71670 and 71671 2.2 (11/19/2015)
815.71670 User's Guide Model 4995A Option 167/671 Windows ReadyFlow BSP for Models 71670, 71671 4.1A (10/16/2017)
816.71670 User's Guide Model 4994A Option 167/671 Linux ReadyFlow BSP for Models 71670 & 71671 4.0 (5/31/2019)
