Model 57760 4-Channel 200 MHz, 16-bit A/D with Virtex-7 FPGA - 6U VPX

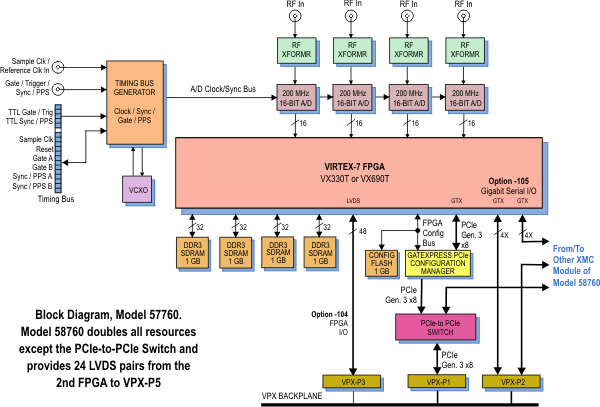

Request a Quote Block Diagram Datasheet Manuals Software Development Systems Literature Life Cycle Management Ordering & Warranty Catalogs

Supports Xilinx Virtex-7 VXT FPGAs GateXpress supports dynamic FPGA reconfiguration across PCIe Four or eight 200 MHz 16-bit A/Ds 4 or 8 GB of DDR3 SDRAM PCI Express (Gen. 1, 2 & 3) interface up to x8 Sample clock synchronization to an external system reference LVPECL clock/sync bus for multiboard synchronization Optional user-configurable gigabit serial interface Optional LVDS connections to the Virtex-7 FPGA for custom I/O Ruggedized and conduction-cooled versions available Supports GateXpress® FPGA-PCIe Configuration Manager Synchronize up to eight modules with Model 7893 System Synchronization and Distribution Amplifier - PCIe Also available in the following form factors: Model 71760 - XMC Model 58760 - VPX 6U (dual XMC) Model 52760 - VPX 3U (single XMC) Model 53760 - VPX 3U (single XMC with switch) Model 78760 - PCIe (single XMC) Model 72760 - cPCI 6U (single XMC) Model 74760 - cPCI 6U (dual XMC) Model 73760 - cPCI 3U (single XMC) Model 56760 - AMC (single XMC) Please refer to the product datasheet for Installed FPGA IP Module details

Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

• Searching for an instruction manual or product datasheet? Request it here.

Software Products - ( top )

---
