Model 72760 4-Channel 200 MHz 16-bit A/D with Virtex-7 FPGA - 6U cPCI

This product is in the Inactive Life Cycle. Please contact Pentek for additional information.

Block Diagram

Datasheet

Manuals

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Complete radar and software radio interface solution
  • Supports Xilinx Virtex-7 VXT FPGAs
  • GateXpress supports dynamic FPGA reconfiguration across PCI/PCI-X bus
  • Four 200 MHz 16-bit A/Ds
  • 4 GB of DDR3 SDRAM
  • Sample clock synchronization to an external system reference
  • LVPECL clock/sync bus for multimodule synchronization
  • Optional LVDS connections to the Virtex-7 FPGA for custom I/O

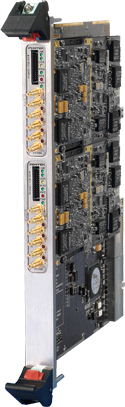

Model 72760

Onyx Xilinx Virtex-7

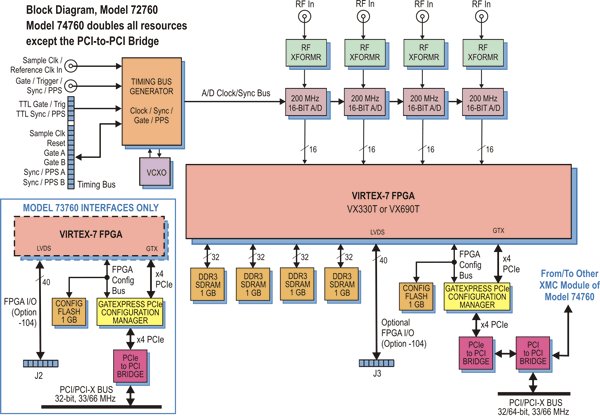

Model 72760 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
800.71760 Operating Manual Model 71760 4-Channel A/D Onyx Family XMC Module 1.11 (7/6/2015)
801.71760 Programmer's Reference ReadyFlow Board Support Library: 7176x, 5973/7070-316, 5973/7070-317, 3316 3.3 (9/19/2016)
809.7x760 Supplemental Manual Vendor Data Sheets for Model 7x760 Series Operating Manuals 1.1 (9/12/2023)
815.71660 User's Guide Model 4995A Option 166/661/662/176 Windows ReadyFlow BSP for 7166x, 7176x 4.3A (9/12/2023)
816.71660 User's Guide Model 4994A Option 166/66x/662/176/76x Linux ReadyFlow BSP for 7166x, 7176x 4.3 (5/9/2016)
