Model 52791 L-Band RF Tuner and 2-Channel 500 MHz A/D with Virtex-7 FPGA - 3U VPX

Request a Quote

Block Diagram

Datasheet

Manuals

Software

Development Systems

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Accepts RF Signals from 925 MHz to 2175 MHz
  • Programmable LNA handles L-Band input signal levels from -50 dBm to +10 dBm
  • Programmable analog downconverter provides IF or I+Q baseband signals at frequencies up to 123 MHz
  • Two 500 MHz 12-bit A/Ds digitize IF or I+Q signals synchronously; optional: 400 MHz 14-bit A/Ds
  • Two FPGA-based multiband digital downconverters
  • Xilinx Virtex-7 VX330T or VX690T FPGAs
  • 4 GB of DDR3 SDRAM
  • Sample clock synchronization to an external system reference
  • PCI Express (Gen. 1, 2 & 3) interface, up to x4
  • Clock/sync bus for multimodule synchronization
  • Optional user-configurable gigabit serial interface
  • Optional LVDS connections to the Virtex-7 FPGA for custom I/O



Request a Quote

Model 52791

Onyx Xilinx Virtex-7

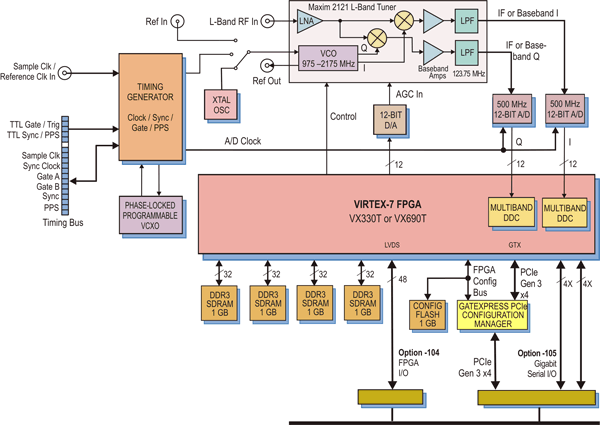

Model 52791 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram



Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
800.52791 Installation Guide Model 52791 L-band Tuner & 2-Ch A/D w/DDCs Onyx Family VPX Module 1.0 (7/21/2016)
800.71791 Operating Manual Model 71791 L-Band Tuner, 2-Channel A/D w/DDCs Onyx Family XMC Module 0.1 (5/16/2016)
809.7x791 Supplemental Manual Vendor Data Sheets for Model 7x791 Series Operating Manuals 1.0 (4/7/2016)
820.52791 User's Guide Getting Started Guide for Model 52791 1.0 (7/25/2016)
Contact Pentek
For Manual
Model 4953 GateFlow FPGA Design Kit for Pentek Modules for Model 52791
Contact Pentek
For Manual
Model 4994A ReadyFlow Board Support Packages (BSPs) for Linux for Model 52791
Contact Pentek
For Manual
Model 4995A ReadyFlow Board Support Packages (BSPs) for Windows for Model 52791
Contact Pentek
For Manual
Model 4996A ReadyFlow Board Support Packages (BSPs) for VxWorks for Model 52791

Software Products - ( top )

Model
Option
Description
4953 791 GateFlow FPGA Design Kit for Pentek Modules
4994A 791 ReadyFlow Board Support Packages (BSPs) for Linux
4995A 791 ReadyFlow Board Support Packages (BSPs) for Windows
4996A 791 ReadyFlow Board Support Packages (BSPs) for VxWorks
