Model 57610 LVDS Digital I/O with Virtex-6 FPGA - 6U VPX

Please contact Pentek for availability.

Block Diagram

Datasheet

Manuals

Development Systems

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • 32 or 64 bits of LVDS digital I/O
  • One or two LVDS clocks
  • One or two LVDS data valid
  • One or two LVDS data suspend
  • Supports LXT and SXT Virtex-6 FPGAS
  • One or two DMA controllers move data to and from system memory
  • Up to 2 or 4 GB of DDR3
  • PCI Express (Gen. 1 & 2) interface up to x8
  • Optional user-configurable gigabit serial interface
  • Optional LVDS connections to the Virtex-6 FPGA for custom I/O to the carrier board
  • Ruggedized and conduction-cooled versions available
  • See comparable Jade Xilinx Kintex UltraScale FPGA Module: Model 57810



Model 57610

Cobalt Xilinx Virtex-6

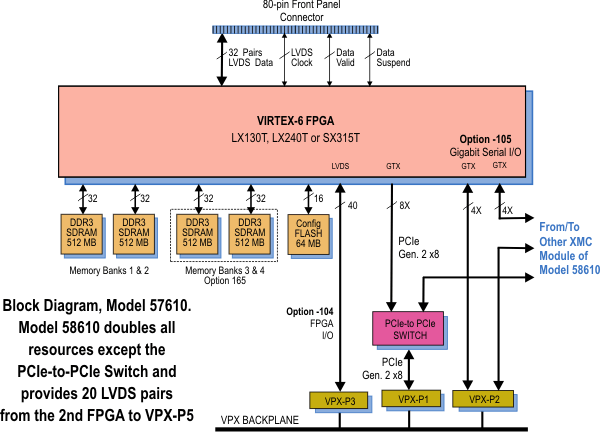

Model 57610 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
801.71610 Programmer's Reference ReadyFlow Board Support Libraries for Model 71610 1.1 (6/20/2016)
815.71610 User's Guide Model 4995A Option 161 Windows ReadyFlow BSP for Models 71610 1.0A (10/9/2017)
816.71610 User's Guide Model 4994A Option 610 Linux ReadyFlow BSP for Model 71610 1.0 (6/21/2016)
