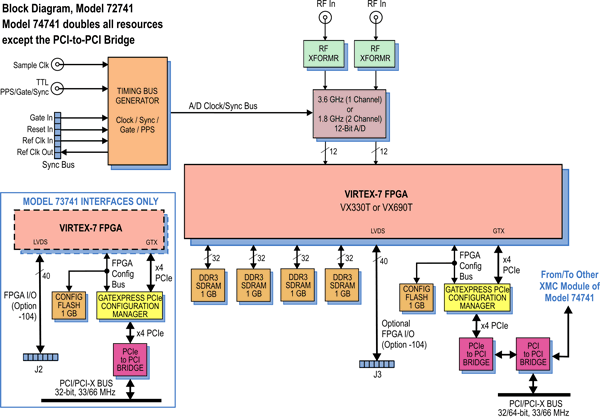

Block Diagram Datasheet Manuals Literature Life Cycle Management Ordering & Warranty Catalogs ![]() |
|
![]() |
Hardware and Software Manuals - ( top )
Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.
Part No.
|
Type
|
Description
|
Revision/Date
|
800.71741 | Operating Manual | Model 71741 2-Ch 1.8 GHz/1-Ch 3.6 GHz A/D w/ DDC Onyx Family XMC Module | 2.8 (12/27/2017) |
801.71740 | Programmer's Reference | ReadyFlow Board Support Libraries for Model 71741 | 3.0 (9/24/2015) |
809.7x741 | Supplemental Manual | Vendor Data Sheets for Model 7x741 Series Operating Manuals | 1.2 (5/15/2014) |
815.71640 | User's Guide | Model 4995A Option 164/641/741 Windows ReadyFlow BSP - 71640, 71641, 71741 | 4.1A (10/10/2017) |
816.71640 | User's Guide | Model 4994A Option 164/641/741 Linux ReadyFlow BSP for 71640, 71641, 71741 | 4.3 (11/6/2015) |
