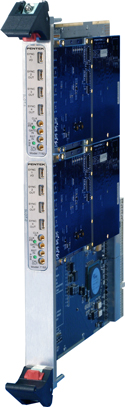

Model 7292 High-Speed System Synchronization and Distribution Amplifier - 6U cPCI

This product is in the Inactive Life Cycle. Please contact Pentek for additional information.

Block Diagram

Datasheet

Manuals

Supported Products

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Synchronizes up to four high-speed Cobalt or Onyx I/O modules
  • Synchronizes sampling and data acquisition for multichannel systems
  • Synchronizes gating and triggering functions
  • Clock rates up to 1.8 GHz
  • Front panel MMCX connectors for input signals
  • Front panel µSync connectors compatible with a range of Pentek Cobalt and Onyx modules



Model 7292

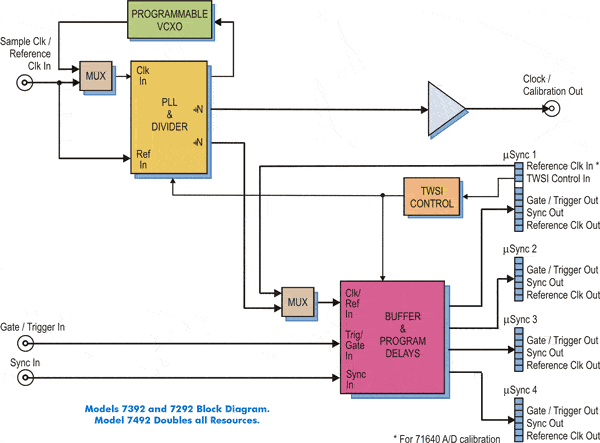

Model 7292 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
815.71920 User's Guide Model 4995A Option 192 Windows ReadyFlow BSP for Models 7192 and 9192 3.0 (9/13/2018)
