Model 71762 4-Channel 200 MHz A/D with 32-Channel DDC, Virtex-7 FPGA - XMC

Please contact Pentek for options, availability and delivery.

Request a Quote

Block Diagram

Manuals

Software

Development Systems

Literature

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Complete radar and software radio interface solution
  • Supports Xilinx Virtex-7 VXT FPGAs
  • Four 200 MHz 16-bit A/Ds
  • Four multiband DDCs
  • 4 GB of DDR3 SDRAM
  • Sample clock synchronization to an external system reference
  • LVPECL clock/sync bus for multimodule synchronization
  • PCI Express (Gen. 1, 2 & 3) interface up to x8
  • VITA 42.0 XMC compatible with switched fabric interfaces
  • Optional user-configurable serial gigabit interfaces
  • Optional LVDS connections to the Virtex-7 FPGA for custom I/O
  • Also available in 3U VPX, 3U & 6U cPCI & PCIe
  • See comparable Jade Xilinx Kintex UltraScale FPGA Module: Model 71862



Request a Quote

Model 71762

Onyx Xilinx Virtex-7

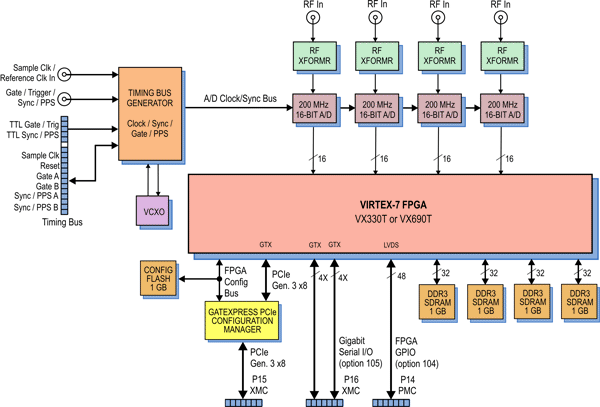

Model 71762 Block Diagram


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
800.71760 Operating Manual Model 71760 4-Channel A/D Onyx Family XMC Module 1.11 (7/6/2015)
809.7x760 Supplemental Manual Vendor Data Sheets for Model 7x760 Series Operating Manuals 1.1 (9/12/2023)
815.71660 User's Guide Model 4995A Option 166/661/662/176 Windows ReadyFlow BSP for 7166x, 7176x 4.3A (9/12/2023)
816.71660 User's Guide Model 4994A Option 166/66x/662/176/76x Linux ReadyFlow BSP for 7166x, 7176x 4.3 (5/9/2016)
Contact Pentek
For Manual
Model 4953 GateFlow FPGA Design Kit for Pentek Modules for Model 71762
Contact Pentek
For Manual
Model 4996A ReadyFlow Board Support Packages (BSPs) for VxWorks for Model 71762

Software Products - ( top )

Model
Option
Description
4953 762 GateFlow FPGA Design Kit for Pentek Modules
4994A 762 ReadyFlow Board Support Packages (BSPs) for Linux
4995A 762 ReadyFlow Board Support Packages (BSPs) for Windows
4996A 762 ReadyFlow Board Support Packages (BSPs) for VxWorks
