Model 6236 14-Bit A/D, Opt. Digital Receivers with Virtex-II FPGA - VIM

This product is no longer available. Contact Pentek for more information.

Block Diagram

Datasheet

Manuals

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Two low distortion 105 MHz 14-bit A/D converters
  • Internal or external A/D sample clock to 105 MHz
  • Advanced Virtex-II FPGA for signal preprocessing
  • Front panel sync bus
  • ASIC and FPGA wideband digital receiver options



Model 6236

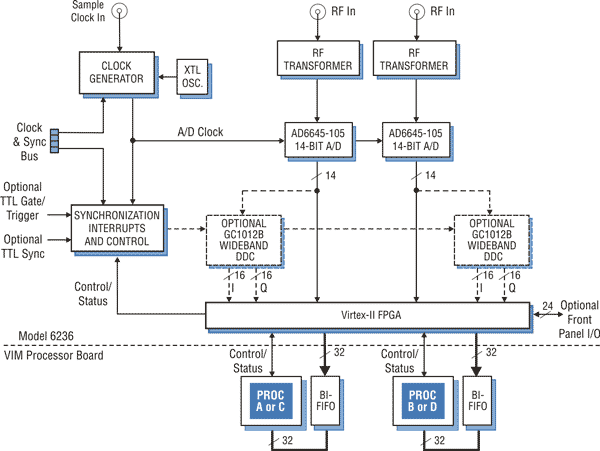

Model 6236 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
800.62311 Addendum Model 6231/6235/6236/6250 Option 102 Installation A (10/8/2003)
800.62360 Operating Manual Model 6236 2-Channel Wideband Digital Downconverter VIM-2 Module A.2 (12/1/2008)
801.62350 User's Guide Model 4999 ReadyFlow Board Support Libraries for Model 6235/6236 3.1 (7/2/2004)
803.62350 User's Guide Model 4996 Option 235, VxWorks Driver for Model 6235/6236 2.0 (6/1/2011)
