Model 58663 2200-Channel GSM Channelizer wih Quad A/D - 6U VPX

Please contact Pentek for availability.

Block Diagram

Datasheet

Manuals

Development Systems

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Complete GSM channelizer with analog IF interface
  • Eight 180 MHz 16-bit A/Ds
  • Four banks of 375 DDCs for upper GSM band
  • Four banks of 175 DDCs for lower GSM band
  • PCI Express (Gen. 1 & 2) interface up to x4
  • LVPECL clock/sync bus for multiboard synchronization
  • Ruggedized and conduction-cooled versions available



Model 58663

Cobalt Xilinx Virtex-6

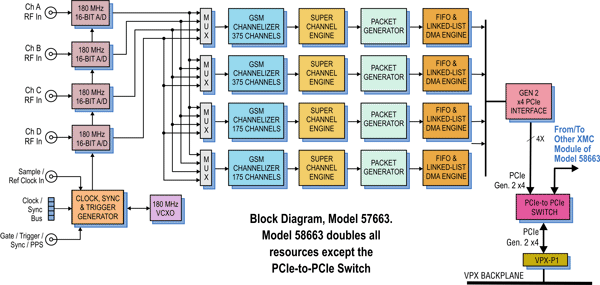

Model 58663 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
801.71660 Programmer's Reference ReadyFlow Board Support Libraries for Models 71660, 71661, 71662, and 71663 4.0 (2/23/2016)
815.71660 User's Guide Model 4995A Option 166/661/662/176 Windows ReadyFlow BSP for 7166x, 7176x 4.3A (9/12/2023)
816.71660 User's Guide Model 4994A Option 166/66x/662/176/76x Linux ReadyFlow BSP for 7166x, 7176x 4.3 (5/9/2016)
