Home > Products > Model 56651

Your Pentek With YourPentek, you can be notified when new documentation and other updated product information is available for the Model 56651. Please login or register to manage your profile.

Model 56651 2-Ch 500 MHz A/D with DDC & 2-Ch 800 MHz D/A with DUC, Virtex-6 FPGA - AMC

This product is in the Inactive Life Cycle. Please contact Pentek for additional information.

Block Diagram

Datasheet

Manuals

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Complete radar and software radio interface solution
  • Supports Xilinx Virtex-6 LXT and SXT FPGAs
  • Two 500 MHz 12-bit A/Ds
  • Two multiband DDCs (digital downconverters)
  • Two 800 MHz 16-bit D/As
  • One DUC (digital upconverter)
  • Multiboard programmable beamformer
  • Up to 2 GB of DDR3 SDRAM or 16 MB of QDRII+ SRAM
  • Sample clock synchronization to an external system reference
  • LVPECL clock sync bus for multimodule synchronization
  • PCI Express (Gen. 1 & 2) interface up to x8
  • Optional front panel LVDS connections to the Virtex-6 FPGA for custom I/O
  • AMC.1 compliant
  • IPMI 2.0 compliant Module Management Controller (MMC)
  • See comparable Jade Xilinx Kintex UltraScale FPGA Module: Model 56851
  • See comparable Onyx Xilinx Virtex-7 FPGA Module: Model 56751



Model 56651

Cobalt Xilinx Virtex-6

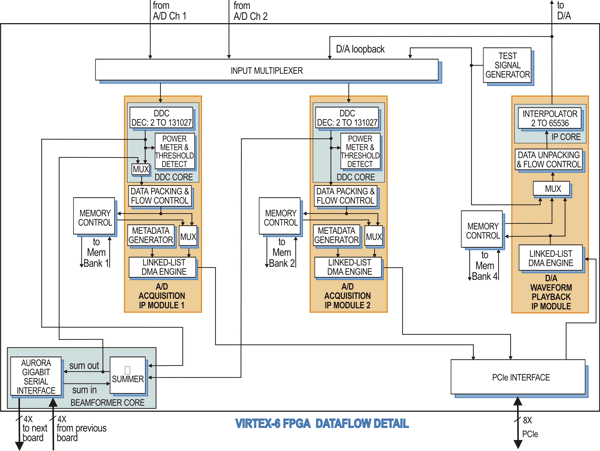

Model 56651 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
800.71601 Addendum Model 716xx Battery Installation 1.1 (12/24/2013)
800.71603 Addendum Model 716xx Reprogram FPGA from FLASH 1.0 (1/23/2012)
800.71650 Operating Manual Model 71650 2-Ch 500 MHz A/D and 2-ch 800-MHz D/A Cobalt Family XMC Module 1.11 (6/25/2015)
800.71651 Addendum Model 71651 2-Ch A/D w/ 2 DDCs, 2-Ch D/A w/Interp, Cobalt Family XMC Module 1.5 (9/19/2014)
801.71650 Programmer's Reference ReadyFlow Board Support Libraries for Models 71650 and 71651 2.2 (10/28/2015)
809.7x650 Supplemental Manual Vendor Data Sheets for Model 7x650 Series Operating Manuals 1.0 (1/20/2012)
815.71650 User's Guide Model 4995A Option 165/651/751 Windows ReadyFlow BSP for 7165x, 71751 4.1A (10/10/2017)
816.71650 User's Guide Model 4994A Option 165/651/751 Linux ReadyFlow BSP for 71650, 71651, 71751 4.1 (10/28/2015)
