Model 52851 2-Ch 500 MHz A/D with DDC & 2-Ch 800 MHz D/A with DUC, Kintex UltraScale - 3UVPX

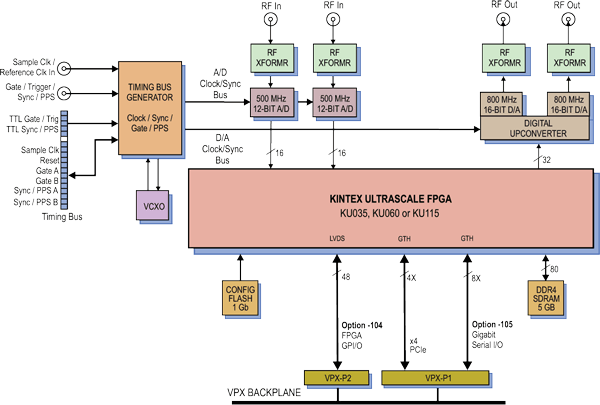

Request a Quote Block Diagram Datasheet Manuals Software Development Systems Literature Life Cycle Management Ordering & Warranty Catalogs

Jade Xilinx Kintex UltraScale FPGA Products and Navigator Design Suite Software Video Jade Xilinx Kintex UltraScale FPGA Family Brochure Complete radar and software radio interface solution Supports Xilinx Kintex UltraScale FPGAs Supports VITA-49.2 VITA Radio Transport standard Two 500 MHz 12-bit A/Ds Two multiband DDCs (digital downconverters) One DUC (digital upconverter) Two 800 MHz 16-bit D/As 5 GB of DDR4 SDRAM Sample clock synchronization to an external system reference LVPECL clock/sync bus for multimodule synchronization PCI Express (Gen. 1, 2 & 3) interface up to x4 Optional LVDS and gigabit serial connections to the FPGA for custom I/O Compatible with several VITA standards including: VITA-46, VITA-48 and VITA-65 (OpenVPX™ System Specification) Optional 400 MHz 14-bit A/Ds Ruggedized and conduction-cooled versions available Synchronize up to eight modules with Model 7893 System Synchronization and Distribution Amplifier - PCIe Also available in the following form factors: Model 71851 - XMC Model 57851 - VPX 6U (single XMC) Model 58851 - VPX 6U (dual XMC) Model 53851 - VPX 3U (single XMC with switch) Model 54851 - VPX 3U (single XMC with optical/backplane RF) Model 78851 - PCIe (single XMC) Model 72851 - cPCI 6U (single XMC) Model 74851 - cPCI 6U (dual XMC) Model 73851 - cPCI 3U (single XMC) Model 56851 - AMC (single XMC) Please refer to the product datasheet for Installed FPGA IP Module details

Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

A complete set of user manuals is provided in HTML format. Access to detailed documentation of the IP Core modules and their programmable registers is only available in the HTML version of the operating manual. Instructions for getting the HTML version of the user manuals is provided in the User Manual Library document listed below.
