Talon RTS 2715 10 Gigabit Ethernet Rackmount Recorder

Request a Quote

Block Diagram

Datasheet

Manuals

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Records 10 Gigabit Ethernet streams
  • 1 or 2 channels
  • TCP and UDP protocols
  • Copper or optical 10 GbE interfaces
  • Aggregate recording rates to 1.6 GB/sec
  • 4U or 5U 19 inch industrial rack-mount PC server chassis
  • Windows® 7 Professional workstation with a high performance Intel® Core" i7 processor
  • Up to 60 terabytes of storage to NTFS RAID disk array
  • RAID levels of 0, 1, 5, 6, 10 and 50
  • SystemFlow® GUI virtual instrumentation panel for fast, intuitive operation
  • C-callable API for integration of recorder into applications
  • File headers include time stamping and recording parameters
  • Optional GPS time and position stamping



Request a Quote

Model 2715

Talon RTS Commercial Recorder
SystemFlow Software for Talon Recording Systems
ArchiTek FPGA Development Suite

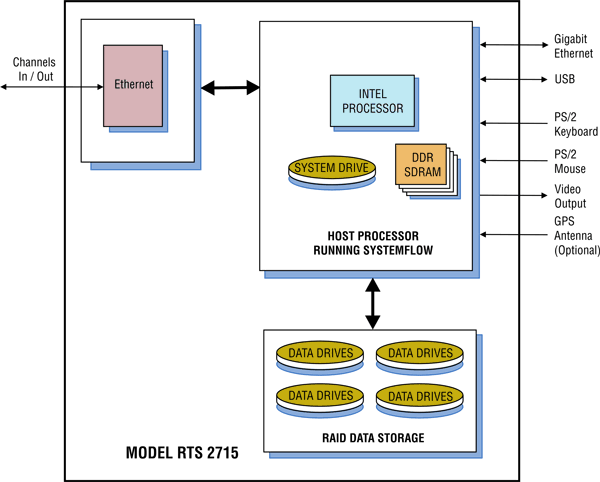

Model 2715 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Pricing and Availability

For the latest pricing, delivery and available options, please fill out this form and your request will be delivered to the appropriate department. To learn more about our products or to discuss your specific application please contact our sales department at sales@pentek.com, 201-818-5900 or contact your local representative.


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
800.27150 Operating Manual RTS 2715 - 10 Gigabit Ethernet Rackmount Recorder 3.0 (10/23/2018)
800.27xx2 User's Guide SystemFlow API User's Development Guide for Talon Recording Systems 3.10 (12/28/2017)
800.27xx4 User's Guide SystemFlow Simulator 2.1 (7/23/2018)
800.27xx5 User's Guide Telnet Facility for Talon Recording Systems 2.2 (6/24/2020)
