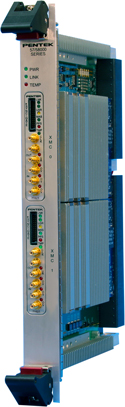

Model 58621 6-Ch 200 MHz A/D with DDC & 4-Ch 800 MHz D/A with DUC, Virtex-6 FPGA - 6U VPX

Please contact Pentek for availability.

Block Diagram

Datasheet

Manuals

Development Systems

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Complete radar and software radio interface solution
  • Supports Xilinx Virtex-6 LXT and SXT FPGAs
  • Six 200 MHz 16-bit A/Ds
  • Six multiband DDCs (digital downconverters)
  • Two DUCs (digital upconverters)
  • Four 800 MHz 16-bit D/As
  • Two multiboard programmable beamformers
  • 4 GB of DDR3 SDRAM; 64 MB of QDRII+ SRAM
  • PCI Express (Gen. 1 & 2) interface up to x8
  • Sample clock synchronization to an external system reference
  • LVPECL clock/sync bus for multiboard synchronization
  • Optional LVDS connections to the Virtex-6 FPGA for custom I/O
  • Ruggedized and conduction-cooled versions available
  • See comparable Jade Xilinx Kintex UltraScale FPGA Module: Model 58821
  • See comparable Onyx Xilinx Virtex-7 FPGA Module: Model 58721



Model 58621

Cobalt Xilinx Virtex-6

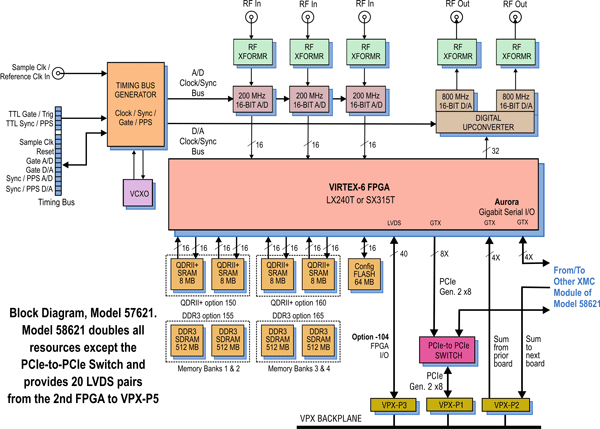

Model 58621 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
801.71620 Programmer's Reference ReadyFlow Board Support Libraries for Models 71620, 71621, and 71624 3.0 (4/1/2016)
815.71620 User's Guide Model 4995A Option 162/62x/172/721 Windows ReadyFlow BSP for 7162x, 7172x 4.3A (10/3/2017)
816.71620 User's Guide Model 4994A Option 162/62x/172/72x Linux ReadyFlow BSP for 7162x, 7172x 4.3 (5/9/2016)
