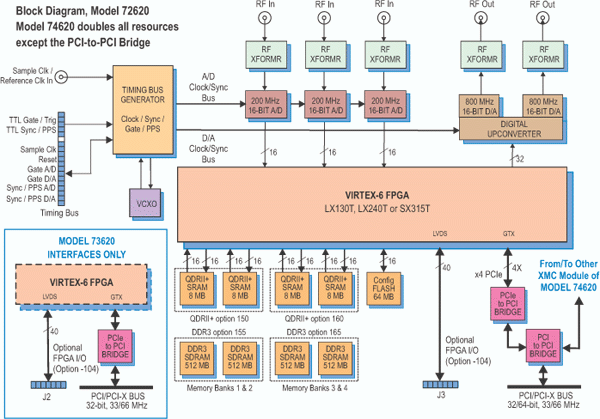

Block Diagram Datasheet Manuals Literature Life Cycle Management Ordering & Warranty Catalogs ![]() |
|
![]() |
Hardware and Software Manuals - ( top )
Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.
Part No.
|
Type
|
Description
|
Revision/Date
|
800.71601 | Addendum | Model 716xx Battery Installation | 1.1 (12/24/2013) |
800.71603 | Addendum | Model 716xx Reprogram FPGA from FLASH | 1.0 (1/23/2012) |
800.71620 | Operating Manual | Model 71620 3-Channel A/D and 2-channel D/A Cobalt Family XMC Module | 2.14 (12/27/2017) |
800.71627 | Addendum | Model 71620 Option 260 Front Panel | 1.0 (1/19/2012) |
801.71620 | Programmer's Reference | ReadyFlow Board Support Libraries for Models 71620, 71621, and 71624 | 3.0 (4/1/2016) |
809.7x620 | Supplemental Manual | Vendor Data Sheets for Model 7x620 Series Operating Manuals | 1.0 (1/16/2012) |
815.71620 | User's Guide | Model 4995A Option 162/62x/172/721 Windows ReadyFlow BSP for 7162x, 7172x | 4.3A (10/3/2017) |
816.71620 | User's Guide | Model 4994A Option 162/62x/172/72x Linux ReadyFlow BSP for 7162x, 7172x | 4.3 (5/9/2016) |
