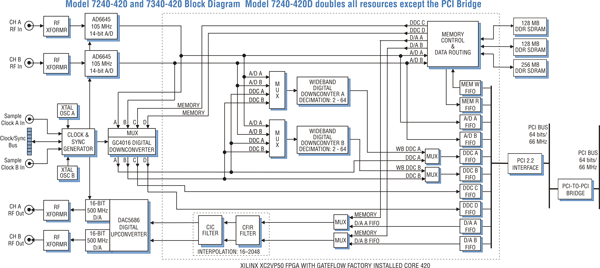

Block Diagram Datasheet Manuals Literature Life Cycle Management Ordering & Warranty Catalogs ![]() |
|
|
Hardware and Software Manuals - ( top )
Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.
Part No.
|
Type
|
Description
|
Revision/Date
|
800.71400 | Operating Manual | Model 7140 Dual Channel A/D and D/A, with DDC and DUC PMC Module | A.4 (9/14/2012) |
800.72400 | Installation Guide | Model 7240 A/D and D/A, with DDC and DUC 6U cPCI Board | B (1/28/2010) |
800.7x404 | Addendum | Model 7x40/7x41 Series -Option 420, WB DDC & Interpolator Cores | A (11/11/2008) |
801.71402 | Installation Guide | Model 4999 Opt.140/141-420, ReadyFlow Board Libraries Model 7140/7141-420 | 1.1C (4/15/2008) |
801.71403 | Addendum | Model 4999 Opt.140/141-420 7140/7141 ReadyFlow Programmer's Reference Guide | 1.1D (9/27/2010) |
803.71400 | User's Guide | Model 4996 Option 140/141/142, VxWorks Driver for Model 7140/7141/7142 | 2.3A (1/18/2008) |
805.71400 | User's Guide | Model 4995 Option 140/141/142, Windows Driver for Model 7140/7141/7142 | 2.3B (1/18/2008) |
806.71400 | User's Guide | Model 4994 Option 140/141/142, Linux Driver for Model 7140/7141/7142 | 2.3A (1/18/2008) |
809.71400 | Supplemental Manual | Vendor Data Sheets for Model 7x40 Series Operating Manuals | A (11/10/2008) |
815.71401 | User's Guide | Model 4995A Opt.140/141-420 Windows ReadyFlow BSP Model 7140/7141 Opt.420 | 1.0 (6/4/2012) |
816.71401 | User's Guide | Model 4994A Opt.140/141-420 Linux ReadyFlow BSP Model 7140/7141 Opt. 420 | 1.2 (4/13/2009) |
