Home > Products > Model 71650

Your Pentek With YourPentek, you can be notified when new documentation and other updated product information is available for the Model 71650. Please login or register to manage your profile.

Model 71650 2-Channel 500 MHz A/D and 2-Channel 800 MHz D/A with Virtex-6 FPGA - XMC

Please contact Pentek for availability.

Block Diagram

Datasheet

Manuals

Development Systems

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Complete radar and software radio interface solution
  • Supports Xilinx Virtex-6 LXT and SXT FPGAs
  • Two 500 MHz 12-bit A/Ds
  • One digital upconverter
  • Two 800 MHz 16-bit D/As
  • Up to 2 GB of DDR3 SDRAM or 32 MB of QDRII+ SRAM
  • Sample clock synchronization to an external system reference
  • Front panel clock/sync bus for multimodule synchronization
  • PCI Express (Gen. 1 & 2) interface up to x8 wide
  • VITA 42.0 XMC compatible with switched fabric interfaces
  • Optional user-configurable gigabit serial interface
  • Optional LVDS connections to the Virtex-6 FPGA for custom I/O



Model 71650

Cobalt Xilinx Virtex-6

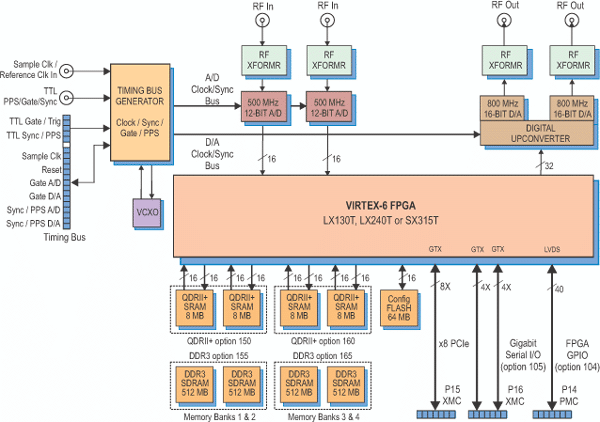

Model 71650 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
800.71601 Addendum Model 716xx Battery Installation 1.1 (12/24/2013)
800.71603 Addendum Model 716xx Reprogram FPGA from FLASH 1.0 (1/23/2012)
800.71650 Operating Manual Model 71650 2-Ch 500 MHz A/D and 2-ch 800-MHz D/A Cobalt Family XMC Module 1.11 (6/25/2015)
801.71650 Programmer's Reference ReadyFlow Board Support Libraries for Models 71650 and 71651 2.2 (10/28/2015)
807.71605 Miscellaneous JTAG Adaptor Insert 1 (10/15/2012)
809.7x650 Supplemental Manual Vendor Data Sheets for Model 7x650 Series Operating Manuals 1.0 (1/20/2012)
815.71650 User's Guide Model 4995A Option 165/651/751 Windows ReadyFlow BSP for 7165x, 71751 4.1A (10/10/2017)
816.71650 User's Guide Model 4994A Option 165/651/751 Linux ReadyFlow BSP for 71650, 71651, 71751 4.1 (10/28/2015)
820.71650 User's Guide Getting Started Guide for Model 71650 1.3 (6/19/2015)
