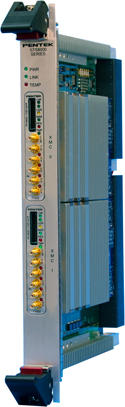

Model 58662 8-Channel 200 MHz A/D with 64-Channel DDC, Virtex-6 FPGA - 6U VPX

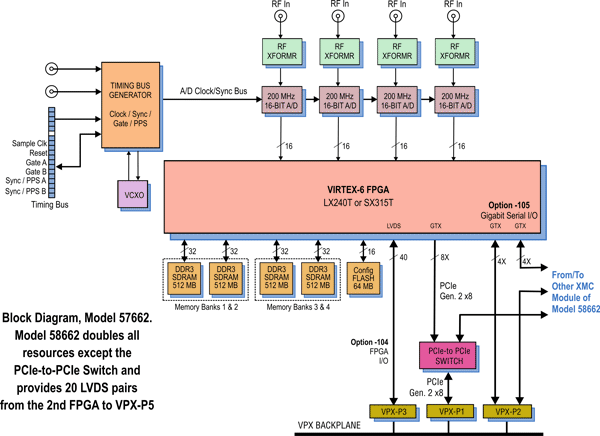

Request a Quote Block Diagram Datasheet Manuals Software Development Systems Literature Life Cycle Management Ordering & Warranty Catalogs

Complete radar and software radio interface solution Supports Xilinx Virtex-6 LXT and SXT FPGAs Eight 200 MHz 16-bit A/Ds 64 channels of multiband DDCs (digital downconverters) Up to 4 GB of DDR3 SDRAM PCI Express (Gen. 1 & 2) interface up to x8 Sample clock synchronization to an external system reference LVPECL clock/sync bus for multiboard synchronization Optional user-configurable gigabit serial interface Optional LVDS connections to the Virtex-6 FPGA for custom I/O Ruggedized and conduction-cooled versions available Synchronize up to eight modules with Model 7893 System Synchronization and Distribution Amplifier - PCIe Also available in the following form factors: Model 71662 - XMC Model 57662 - VPX 6U (single XMC) Model 52662 - VPX 3U (single XMC) Model 53662 - VPX 3U (single XMC with switch) Model 78662 - PCIe (single XMC) Model 72662 - cPCI 6U (single XMC) Model 74662 - cPCI 6U (dual XMC) Model 73662 - cPCI 3U (single XMC) Model 56662 - AMC (single XMC) See comparable Jade Xilinx Kintex UltraScale FPGA Module: Model 58862 Please refer to the product datasheet for Installed FPGA IP Module details

Pricing and Availability

For the latest pricing, delivery and available options, please fill out this form and your request will be delivered to the appropriate department. To learn more about our products or to discuss your specific application please contact our sales department at SDL-sales@mrcy.com, 201-818-5900 or contact your local representative.

Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

• Searching for an instruction manual or product datasheet? Request it here.
