Model 53751 2-Ch 500 MHz A/D with DDC & 2-Ch 800 MHz D/A with DUC, Virtex-7 FPGA - 3U VPX

This product is no longer available. Please see Model 52751.

Block Diagram

Datasheet

Manuals

Development Systems

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Complete radar and software radio interface solution
  • Supports Xilinx Virtex-7 VXT FPGAs
  • GateXpress supports dynamic FPGA reconfiguration across PCIe
  • Two 500 MHz 12-bit A/Ds
  • Two multiband DDCs (digital downconverters)
  • One DUC (digital upconverter)
  • Two 800 MHz 16-bit D/As
  • 4 GB of DDR3 SDRAM
  • Sample clock synchronization to external system reference
  • LVPECL clock/sync bus for multiboard synchronization
  • PCI Express (Gen. 1 and 2) interface up to x8
  • Optional user-configurable gigabit serial interface
  • Optional LVDS connections to the FPGA for custom I/O
  • Optional 400 MHz 14-bit A/Ds
  • 3U VPX form factor provides a compact, rugged platform
  • Compatible with several VITA standards including: VITA-46, VITA-48 and VITA-65 (OpenVPX™ System Specification)
  • See comparable Jade Xilinx Kintex UltraScale FPGA Module: Model 53851



Model 53751

Onyx Xilinx Virtex-7

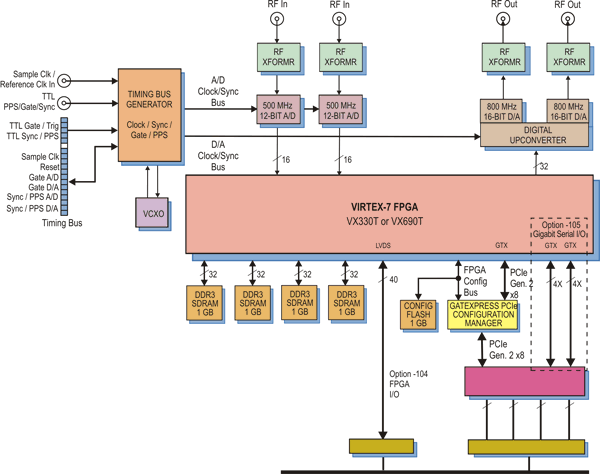

Model 53751 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
800.71751 Operating Manual Model 71751 2-Ch A/D w/ 2 DDCs, 2-Ch D/A w/Interp, Onyx Family XMC Module 1.8 (6/28/2016)
801.71750 Programmer's Reference ReadyFlow Board Support Libraries for 71751, 5973/7070-320, 5973/7070-324 3.2 (9/19/2016)
809.7x751 Supplemental Manual Vendor Data Sheets for Model 7x751 Series Operating Manuals 1.1 (5/15/2014)
815.71650 User's Guide Model 4995A Option 165/651/751 Windows ReadyFlow BSP for 7165x, 71751 4.1A (10/10/2017)
816.71650 User's Guide Model 4994A Option 165/651/751 Linux ReadyFlow BSP for 71650, 71651, 71751 4.1 (10/28/2015)
