Model 4205 VIM/PMC Carrier and MPC7457 PowerPC - VME

This product is no longer available. Contact Pentek for more information.

Block Diagram




Life Cycle Management

Ordering & Warranty


Free Lifetime Support

  • Freescale 1.267 GHz MPC7457 PowerPC processor
  • Xilinx Virtex-II FPGAs
  • Selectable FPGA data flow architecture
  • Hosts one PMC plus one VIM-2 module, two VIM-2 modules, or one VIM-4 module
  • Optional onboard Fibre Channel interface
  • Optional onboard Gigabit Ethernet interface
  • 2 MB L3 cache
  • Up to 1 GB SDRAM
  • Two 64-bit PCI buses
  • VME64 master/slave interface

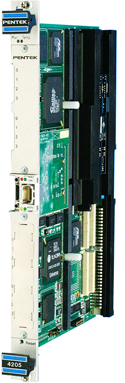

Model 4205

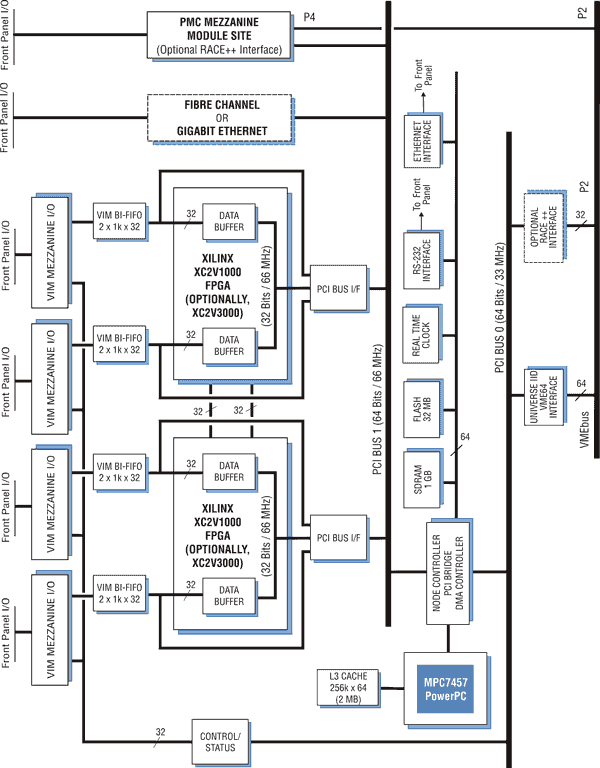

Model 4205 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram

Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
800.42050 Operating Manual Model 4205 PowerPC VIM/PMC Carrier VMEbus A.6 (3/8/2007)
800.42051 Addendum Model 4205 PMC Terminator Installation A (3/10/2008)
801.42050 User's Guide Model 4999 Option 205, ReadyFlow Board Support Libraries for Model 4205 1.5 (7/31/2006)
803.42050 User's Guide Model 4996 Option 205, VxWorks Board Support Package for Model 4205 1.4.1 (10/3/2007)
