Model 78865 2-Channel 200 MHz A/D with 766 DDCs, Kintex UltraScale FPGA - PCIe

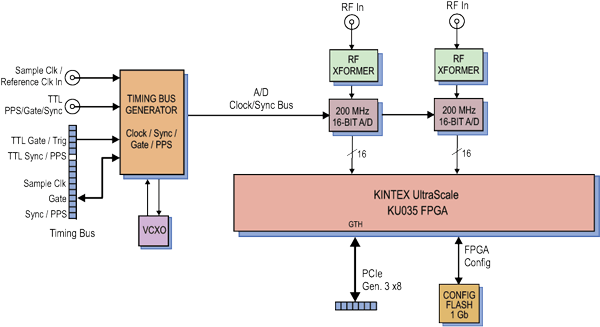

Request a Quote Block Diagram Datasheet Manuals Software Development Systems Literature Life Cycle Management Ordering & Warranty Catalogs

Jade Xilinx Kintex UltraScale FPGA Products and Navigator Design Suite Software Video Jade Xilinx Kintex UltraScale FPGA Family Brochure Complete software radio receiver solution for extremely high-channel-count applications Uses Xilinx Kintex UltraScale KU035 FPGAs Two 200 MHz 16-bit A/Ds Four wideband DDCs (digital downconverters) Up to 762 narrowband DDCs Sample clock generation and synchronization to an external system reference PCI Express (Gen. 1, 2 & 3) interface up to x8 Ruggedized version available Synchronize up to eight modules with Model 7893 System Synchronization and Distribution Amplifier - PCIe Also available in the following form factors: Model 71865 - XMC Model 57865 - VPX 6U (single XMC) Model 58865 - VPX 6U (dual XMC) Model 52865 - VPX 3U (single XMC) Model 53865 - VPX 3U (single XMC with switch) Model 72865 - cPCI 6U (single XMC) Model 74865 - cPCI 6U (dual XMC) Model 73865 - cPCI 3U (single XMC) Model 56865 - AMC (single XMC) Please refer to the product datasheet for Installed FPGA IP Module details

Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

A complete set of user manuals is provided in HTML format. Access to detailed documentation of the IP Core modules and their programmable registers is only available in the HTML version of the operating manual. Instructions for getting the HTML version of the user manuals is provided in the User Manual Library document listed below.

• Searching for an instruction manual or product datasheet? Request it here.
