Home > Products > Model 71651

Your Pentek With YourPentek, you can be notified when new documentation and other updated product information is available for the Model 71651. Please login or register to manage your profile.

Model 71651 2-Ch 500 MHz A/D with DDC & 2-Ch 800 MHz D/A with DUC, Virtex-6 FPGA - XMC

Request a Quote

Block Diagram

Datasheet

Manuals

Software

Development Systems

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Complete radar and software radio interface solution
  • Supports Xilinx Virtex-6 LXT and SXT FPGAs
  • Two 500 MHz 12-bit A/Ds
  • Two multiband DDCs (digital downconverters)
  • Two 800 MHz 16-bit D/As
  • One DUC (digital upconverter)
  • Multiboard programmable beamformer
  • Up to 2 GB of DDR3 SDRAM or 16 MB of QDRII+ SRAM
  • Sample clock synchronization to an external system reference
  • Front panel clock/sync bus for multimodule synchronization
  • PCI Express (Gen. 1 & 2) interface up to x8
  • Optional LVDS connections to the Virtex-6 FPGA for custom I/O
  • See comparable Jade Xilinx Kintex UltraScale FPGA Module: Model 71851
  • See comparable Onyx Xilinx Virtex-7 FPGA Module: Model 71751



Request a Quote

Model 71651

Cobalt Xilinx Virtex-6

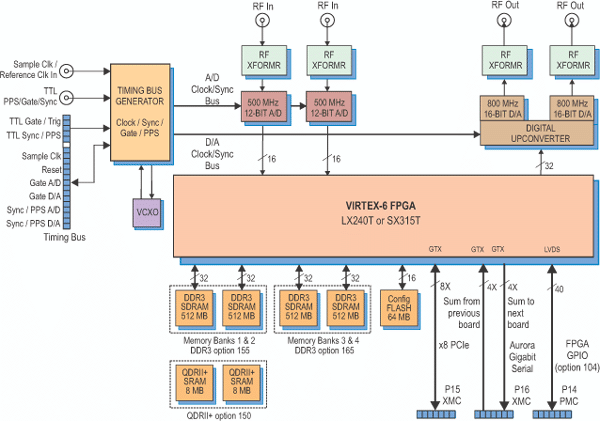

Model 71651 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Pricing and Availability

For the latest pricing, delivery and available options, please fill out this form and your request will be delivered to the appropriate department. To learn more about our products or to discuss your specific application please contact our sales department at SDL-sales@mrcy.com, 201-818-5900 or contact your local representative.


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
800.71601 Addendum Model 716xx Battery Installation 1.1 (12/24/2013)
800.71603 Addendum Model 716xx Reprogram FPGA from FLASH 1.0 (1/23/2012)
800.71650 Operating Manual Model 71650 2-Ch 500 MHz A/D and 2-ch 800-MHz D/A Cobalt Family XMC Module 1.11 (6/25/2015)
800.71651 Addendum Model 71651 2-Ch A/D w/ 2 DDCs, 2-Ch D/A w/Interp, Cobalt Family XMC Module 1.5 (9/19/2014)
801.71650 Programmer's Reference ReadyFlow Board Support Libraries for Models 71650 and 71651 2.2 (10/28/2015)
807.71605 Miscellaneous JTAG Adaptor Insert 1 (10/15/2012)
809.7x650 Supplemental Manual Vendor Data Sheets for Model 7x650 Series Operating Manuals 1.0 (1/20/2012)
815.71650 User's Guide Model 4995A Option 165/651/751 Windows ReadyFlow BSP for 7165x, 71751 4.1A (10/10/2017)
816.71650 User's Guide Model 4994A Option 165/651/751 Linux ReadyFlow BSP for 71650, 71651, 71751 4.1 (10/28/2015)
820.71651 User's Guide Getting Started Guide for Model 71651 1.3 (6/19/2015)
Contact Pentek
For Manual
Model 4953 GateFlow FPGA Design Kit for Pentek Modules for Model 71651
Contact Pentek
For Manual
Model 4996A ReadyFlow Board Support Packages (BSPs) for VxWorks for Model 71651

Software Products - ( top )

Model
Option
Description
4953 651 GateFlow FPGA Design Kit for Pentek Modules
4994A 651 ReadyFlow Board Support Packages (BSPs) for Linux
4995A 651 ReadyFlow Board Support Packages (BSPs) for Windows
4996A 651 ReadyFlow Board Support Packages (BSPs) for VxWorks
