Model 56891 L-Band RF Tuner and 2-Channel 400 MHz A/D with Kintex UltraScale FPGA - AMC

This product is in the Inactive Life Cycle. Please contact Pentek for additional information.

Block Diagram

Manuals

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Accepts RF signals from 925 MHz to 2175 MHz
  • Programmable LNA handles L-Band input signal levels from -50 dBm to + 10 dBm
  • Programmable analog downconverter provides IF or I+Q baseband signals at frequencies up to 123 MHz
  • Two 400 MHz 14-bit A/Ds digitize IF or I+Q signals synchronously
  • Two FPGA-based multiband DDCs (digital downconverters)
  • Xilinx® Kintex® UltraScale™ FPGA
  • Five GB of DDR4 SDRAM
  • Sample clock synchronization to an external system reference
  • Navigator BSP® for software development
  • Navigator FDK® for custom IP development
  • Free lifetime applications support

  Jade Xilinx Kintex UltraScale FPGA Family Brochure
Jade Xilinx UltraScale

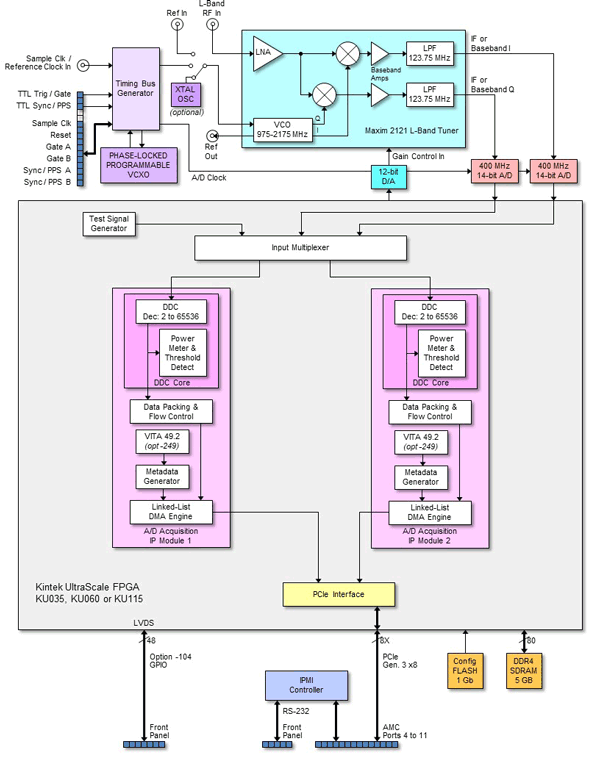

Model 56891 Block Diagram

Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

A complete set of user manuals is provided in HTML format. Access to detailed documentation of the IP Core modules and their programmable registers is only available in the HTML version of the operating manual. Instructions for getting the HTML version of the user manuals is provided in the User Manual Library document listed below.

Part No.
Type
Description
Revision/Date
800.48145 User's Guide Navigator BSP for Jade User's Guide - Windows & Linux 4.2 (9/29/2023)
