Pentek Introduces New Portable, Rugged Sentinel Intelligent Signal Scanning Recorder

  • Scan and search from 20 MHz to 6 GHz at 30 GHz/sec scan rate
  • Automatically tune, detect and record signals of interest
  • Capture instantaneous RF signal bandwidths up to 40 MHz
  • Portable and rugged system for mobile applications
  • Storage capacities to 30 TB
Follow Us On Facebook
Follow Us On LinkedIn
Follow Us On Twitter
Follow Us On Google+
Follow Us On YouTube

Upper Saddle River, NJ - October 24, 2016 - Pentek, Inc., today announced an addition to its popular family of Talon® signal recording systems, the RTR 2623 6 GHz RF SentinelTM Intelligent Signal Scanning portable, rugged recorder. The RTR 2623 combines and exploits the power of a Pentek Talon recording system with a fully integrated 6 GHz RF down converter. The Sentinel capability adds intelligent signal scanning with real-time signal monitoring and detection that is fully user configurable.

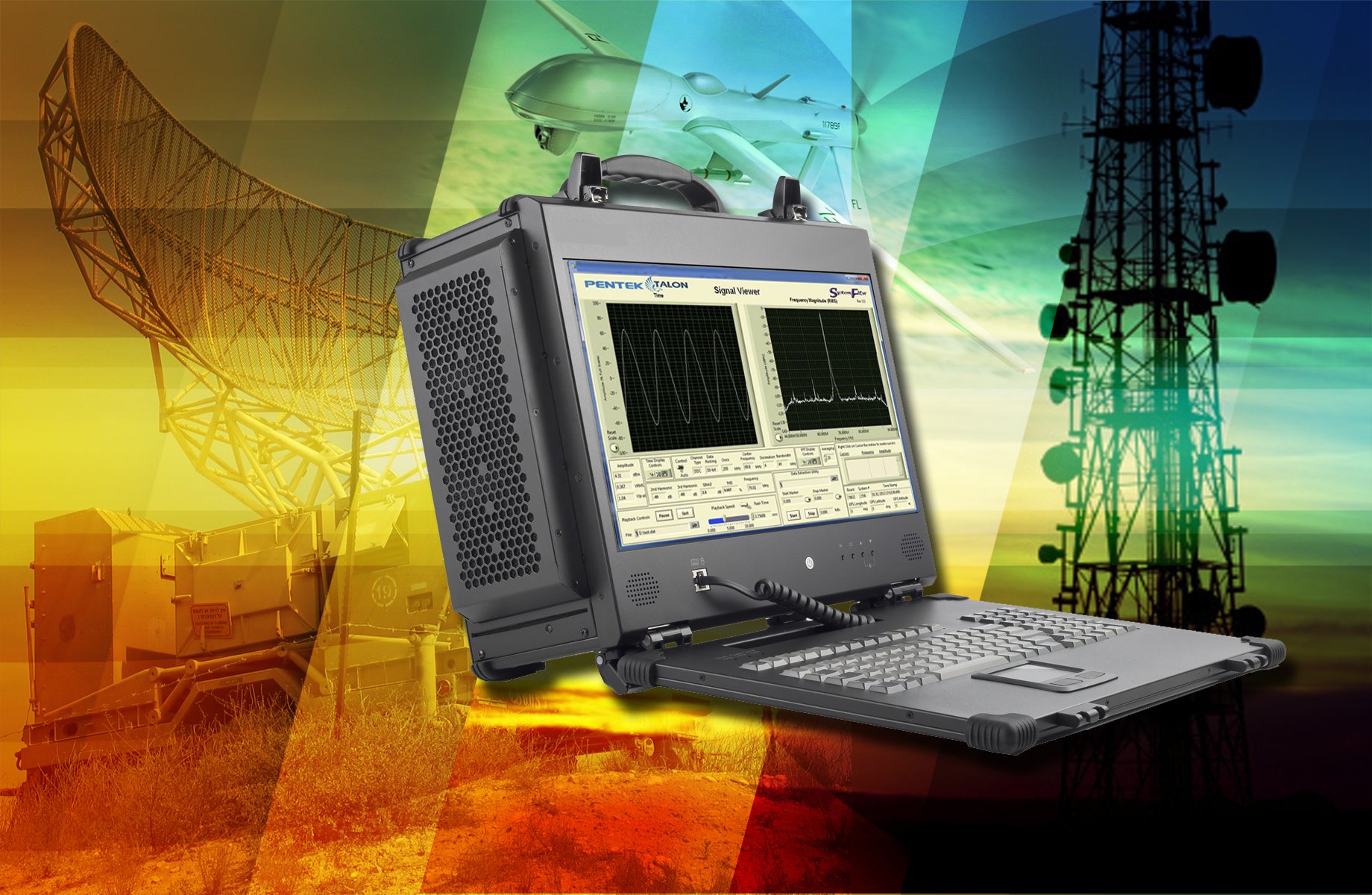

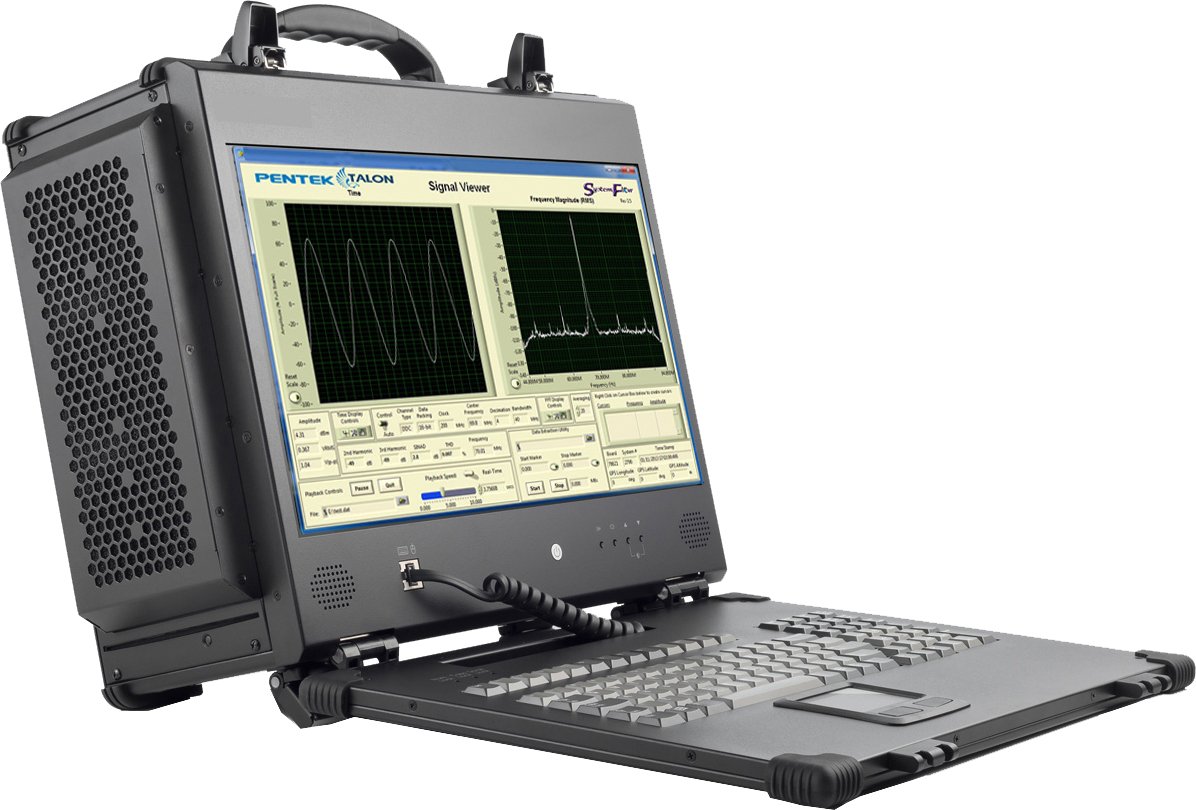

The Talon RTR 2623 is configured in a small footprint portable package measuring only 16.0" W x 6.9" D x 13.0" H and weighing 30 pounds. The portable and rugged RTR 2623 recorder is a grab- and- go portable recorder suitable for mobile military, security and government intelligence (SIGINT, COMINT and ELINT) applications. The recorder performs in nearly any mobile platform, even when subject to challenging levels of vibration.

A Pentek Model 78621 Cobalt® transceiver module serves as the data acquisition engine of the Talon RTR 2623. Its 200 MHz 16-bit A/D converter provides 86 dB of spurious-free dynamic range and 74 dB of SNR. A digital downconverter (DDC) provides frequency zooming for signal bandwidths as low as a few kHz. The Model 78621 is coupled to a 6 GHz RF tuner front end with excellent dynamic range across its entire spectrum.

Sentinel Intelligent Signal Scanning

Sentinel users can scan the entire available spectrum or select a region of interest. Selectable-resolution bandwidth allows for the trading of sweep rate for a finer resolution and better dynamic range. RF energy in each band of the scan is detected and presented in a waterfall display. Any RF band can be selected for real-time monitoring or recording. The Sentinel hardware resources are controlled through enhancements to Talons SystemFlow® software package.

"The RTR 2623 can reliably and intelligently capture massive amounts of signal data in real-time, all within a compact, rugged, and highly portable package," said Rodger Hosking, vice-president of Pentek. "The deep storage capacity provides hours and hours of data capture and the intuitive user interface outclasses other types of equipment on the market," he added.

Ease of Operation

Talon Sentinel recorders are built on a Windows 7 Professional workstation with an Intel Core i7 processor and provide both a GUI (graphical user interface) and API (Application Programmers Interface) to control the system. Systems are fully supported with Pentek's SystemFlow® software for system control and turn-key operation. SystemFlow software has been enhanced to include intelligent scanning and integrated control of the RF tuner and optional RF upconverter. The software provides a GUI with point-and-click configuration management and can store custom configurations for single-click setup. It also includes a virtual oscilloscope, spectrum analyzer and spectrogram to monitor signals before, during and after data collection.

Post processing and analysis software tools like Matlab can be installed directly on the Talon RTR 2623 platform. Data files are recorded to the Windows native NTFS file system, which allows operators immediate access to recordings without the need for any file format conversion.

Configuration Options

The Solid State Drive (SSD) array is available in 2 to 30 TB configurations and supports RAID levels 0, 5 and 6. Additional options include recordable GPS time and position stamping and 10GbE or 40GbE offload facilities.
