Home > Products > Model 78851

Your Pentek With YourPentek, you can be notified when new documentation and other updated product information is available for the Model 78851. Please login or register to manage your profile.

Model 78851 2-Ch 500 MHz A/D with DDC & 2-Ch 800 MHz D/A with DUC, Kintex UltraScale - PCIe

Request a Quote

Block Diagram

Datasheet

Manuals

Software

Development Systems

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Complete radar and software radio interface solution
  • Supports Xilinx Kintex Ultrascale FPGAs
  • Supports VITA-49.2 VITA Radio Transport standard
  • Two 500 MHz 12-bit A/Ds
  • Two multiband DDCs (digital downconverters)
  • One DUC (digital upconverter)
  • Two 800 MHz 16-bit D/As
  • 5 GB of DDR4 SDRAM
  • Sample clock synchronization to an external system reference
  • LVPECL clock/sync bus for multimodule synchronization
  • PCI Express (Gen. 1, 2, & 3) interface up to x8
  • Optional LVDS and gigabit serial connections to the Kintex Ultrascale FPGA for custom I/O
  • Optional 400 MHz 14-bit A/Ds
  • Ruggedized version available



Request a Quote

Model 78851

Jade Xilinx Kintex UltraScale FPGA Family Brochure
Jade Xilinx UltraScale

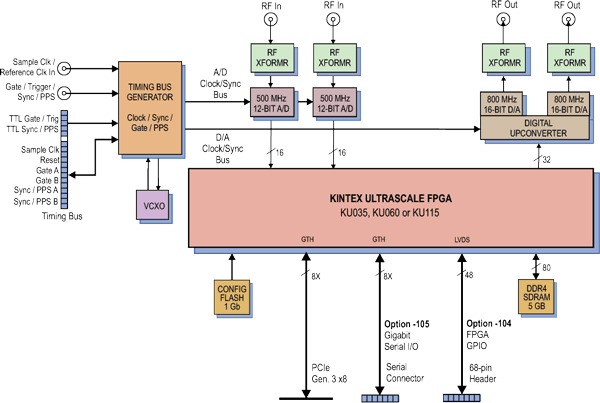

Model 78851 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Pricing and Availability

For the latest pricing, delivery and available options, please fill out this form and your request will be delivered to the appropriate department. To learn more about our products or to discuss your specific application please contact our sales department at SDL-sales@mrcy.com, 201-818-5900 or contact your local representative.


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

A complete set of user manuals is provided in HTML format. Access to detailed documentation of the IP Core modules and their programmable registers is only available in the HTML version of the operating manual. Instructions for getting the HTML version of the user manuals is provided in the User Manual Library document listed below.

Part No.
Type
Description
Revision/Date
800.48145 User's Guide Navigator BSP for Jade User's Guide - Windows & Linux 4.2 (9/29/2023)
800.71851 Operating Manual 2- Chan 500 MHz A/D, 2- Chan 800 MHz D/A with DDCs, DUC Jade XMC Module 1.3 (5/1/2018)
820.78851 User's Guide Getting Started Guide for Model 78851 1.1 (1/2/2018)
821.78851 Release Note User Manual Library for Model 78851 3.0 (3/10/2023)
822.71851 Release Note Model 71851 FDK Revision Histories 5.0 (6/16/2023)

Software Products - ( top )

Model
Option
Description
4811 851 Navigator FDK (FPGA Design Kit)
4814 851 Navigator BSP (Board Support Package) for Linux
4815 851 Navigator BSP (Board Support Package) for Windows
