Model 7353 2/4-Channel Quad 200 MHz 16-bit A/D DDC - 3U cPCI

This product is in the Inactive Life Cycle. Please contact Pentek for additional information.

Block Diagram

Datasheet

Manuals

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Built-in Beamformer supports multiboard systems
  • Programmable Power Meter and Treshold Detect per channel
  • 6U and 3U cPCI boards
  • 2 (Models 7253 and 7353) and 4 (Model 7753D) channels of DDC
  • Four 200 MHz, 16-bit A/Ds
  • Independent 32-bit DDC tuning for all channels
  • DDC decimation range from 2 to 256 or from 2 to 65536
  • LVPECL clock/sync bus for multiboard synchronization



Model 7353

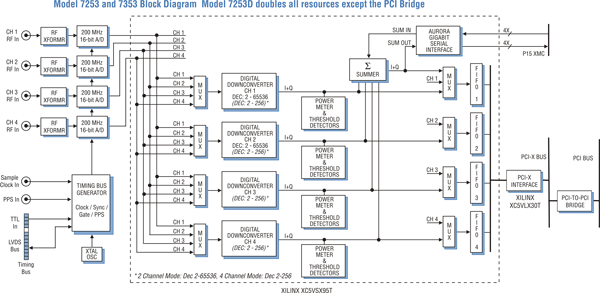

Model 7353 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
800.71530 Operating Manual Model 7153 Quad Digital Downconverter and Beamformer PMC/XMC Module A.3 (3/20/2014)
800.73530 Installation Guide Model 7353 Quad DDC and Beamformer 3U cPCI Board A (8/17/2010)
801.71531 Programmer's Reference ReadyFlow Board Support Libraries for Model 7153 A (6/11/2010)
809.7x500 Supplemental Manual Vendor Data Sheets for Model 7x50 Series Operating Manuals A (3/22/2010)
815.71530 User's Guide Model 4995A Option 153 Windows ReadyFlow BSP for Model 7153 1.1A (6/28/2010)
816.71530 User's Guide Model 4994A Option 153 Linux ReadyFlow BSP for Model 7153 1.0 (5/29/2012)
820.73530 User's Guide Getting Started Guide for Model 7353 A (12/1/2010)
