Model 73141 1-Ch. 6.4 GHz or 2-Ch. 3.2 GHz A/D, 2-Ch 6.4 GHz D/A Kintex UltraScale - 3U cPCI

This product is in the Inactive Life Cycle. Please contact Pentek for additional information.

Block Diagram

Datasheet

Manuals

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Ideal radar and software radio interface solution
  • Supports Xilinx Kintex UltraScale FPGAs
  • Supports VITA-49.2 VITA Radio Transport standard
  • One-channel mode with 6.4 GHz, 12-bit A/Ds
  • Two-channel mode with 3.2 GHz, 12-bit A/Ds
  • Two-channel mode with 6.4 GHz, 14-bit A/Ds
  • Programmable DDCs (Digital Downconverters)
  • 5 GB of DDR4 SDRAM
  • µSync clock/sync bus for multimodule synchronization
  • Optional LVDS and gigabit serial connections to the FPGA for custom I/O



Model 73141

Jade Xilinx Kintex UltraScale FPGA Family Brochure
Jade Xilinx UltraScale

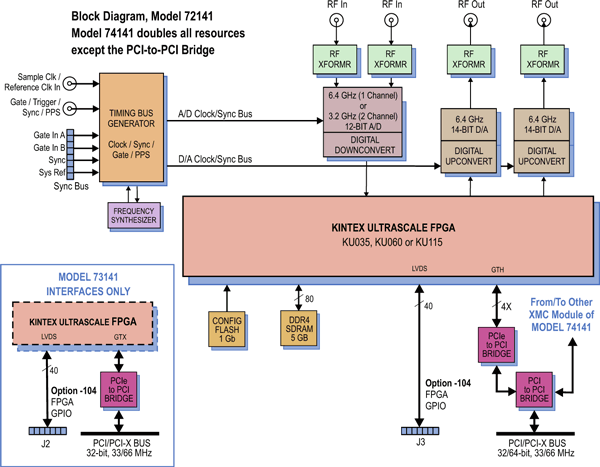

Model 73141 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

A complete set of user manuals is provided in HTML format. Access to detailed documentation of the IP Core modules and their programmable registers is only available in the HTML version of the operating manual. Instructions for getting the HTML version of the user manuals is provided in the User Manual Library document listed below.

Part No.
Type
Description
Revision/Date
800.48145 User's Guide Navigator BSP for Jade User's Guide - Windows & Linux 4.2 (9/29/2023)
800.71141 Operating Manual 1Ch 6.4 GHz A/D or 2Ch 3.2 GHz A/D, 2-Ch 6.4 GHz D/A Jade XMC Module 1.2 (8/2/2018)
822.71141 Release Note Model 71141 FDK Revision Histories 4.0 (6/8/2023)
