Model 7256D Quad 400 MHz A/Ds, 800 MHz D/As with Virtex-5 FPGAs - 6U cPCI

This product is in the Inactive Life Cycle. Please contact Pentek for additional information.

Block Diagram

Datasheet

Manuals

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Complete software radio interface solution
  • Four 400 MHz, 14-bit A/Ds
  • Two digital upconverter
  • Four 800 MHz, 16-bit D/As
  • Up to 2 GB of DDR2 SDRAM
  • Four Xilinx Virtex-5 FPGAs
  • Sample clock synchronization to an external system reference
  • LVPECL clock/sync bus for multimodule synchronization
  • 64 pairs of LVDS connections to the Virtex-5 FPGAs for custom I/O

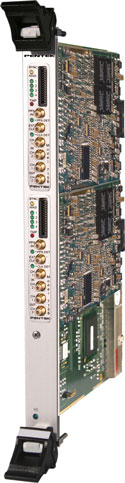

Model 7256D



Model 7256D Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
800.71560 Operating Manual Model 7156 Dual 400-MHz A/D & 800-MHz D/A PMC/XMC Module A.3 (11/19/2010)
800.72560 Installation Guide Model 7256 Dual/Quad 400-MHz A/D & 800-MHz D/A 6U cPCI Board A (7/16/2010)
801.71561 Programmer's Reference ReadyFlow Board Support Libraries for Model 7156 1.2B (12/7/2010)
809.7x560 Supplemental Manual Vendor Data Sheets for Model 7x56 Series Operating Manuals A (4/29/2010)
813.71560 User's Guide Model 4996A Option 156 VxWorks ReadyFlow BSP for Model 7156 1.0 (5/29/2012)
815.71560 User's Guide Model 4995A Option 156 Windows ReadyFlow BSP for Model 7156 1.2C (12/9/2010)
816.71560 User's Guide Model 4994A Option 156 Linux ReadyFlow BSP for Model 7156 1.1A (12/9/2010)
