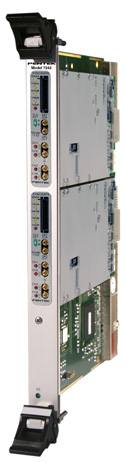

Model 7242 4-Channel A/D, 1-Channel D/A with Virtex-4 FPGAs - 6U cPCI

This product is in the Inactive Life Cycle. Please contact Pentek for additional information.

Block Diagram

Datasheet

Manuals

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Complete software radio interface solution
  • Four 125 MHz 14-bit A/Ds
  • One digital upconverter
  • One 500 MHz 16-bit D/A
  • 768 MB of DDR2 SDRAM
  • Two Xilinx Virtex-4 FPGAs
  • Up to 2.0 seconds of delay or data capture at 125 MHz
  • Dual timing buses for independent input and output clock rates
  • LVDS clock/sync bus for multi-board synchronization
  • 32 pairs of LVDS connections to the Virtex-4 FPGAs for custom I/O
  • Optional factory-installed IP cores available



Model 7242



Model 7242 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
800.71420 Operating Manual Model 7142 Four Channel A/D with DAC PMC/XMC Module B.10 (2/9/2010)
800.71421 Addendum 7x42 Series Xilinx Programming Instructions A (11/18/2008)
800.72420 Installation Guide Model 7242 Multichannel Transceiver 6U cPCI board B.1 (10/9/2009)
801.71420 Installation Guide Model 4999 Option 142, ReadyFlow Board Support Libraries for Model 7142 1.1 (3/18/2008)
801.71421 Programmer's Reference Model 4999 Option 142, ReadyFlow Board Support Libraries for Model 7142 1.1 (3/18/2008)
803.71400 User's Guide Model 4996 Option 140/141/142, VxWorks Driver for Model 7140/7141/7142 2.3A (1/18/2008)
805.71400 User's Guide Model 4995 Option 140/141/142, Windows Driver for Model 7140/7141/7142 2.3B (1/18/2008)
806.71400 User's Guide Model 4994 Option 140/141/142, Linux Driver for Model 7140/7141/7142 2.3A (1/18/2008)
809.7x420 Supplemental Manual Vendor Data Sheets for Model 7x42 Series Operating Manuals A (11/18/2008)
813.71420 User's Guide Model 4996A Option 142 VxWorks ReadyFlow BSP for Model 7142 1.1 (3/6/2009)
815.71420 User's Guide Model 4995A Option 142 Windows ReadyFlow BSP for Model 7142 1.0 (6/5/2012)
816.71420 User's Guide Model 4994A Option 142 Linux ReadyFlow BSP for Model 7142 1.1A (6/8/2009)
