Model 72141 1-Ch. 6.4 GHz or 2-Ch. 3.2 GHz A/D, 2-Ch 6.4 GHz D/A Kintex UltraScale - 6U cPCI

Request a Quote

Block Diagram

Datasheet

Manuals

Software

Literature

Life Cycle Management

Ordering & Warranty

Catalogs


  • Ideal radar and software radio interface solution
  • Supports Xilinx Kintex UltraScale FPGAs
  • One-channel mode with 6.4 GHz, 12-bit A/Ds
  • Two-channel mode with 3.2 GHz, 12-bit A/Ds
  • Two-channel mode with 6.4 GHz, 14-bit A/Ds
  • Programmable DDCs (Digital Downconverters)
  • 5 GB of DDR4 SDRAM
  • ┬ÁSync clock/sync bus for multimodule synchronization
  • Optional LVDS and gigabit serial connections to the FPGA for custom I/O



Request a Quote

Model 72141

Jade Xilinx UltraScale

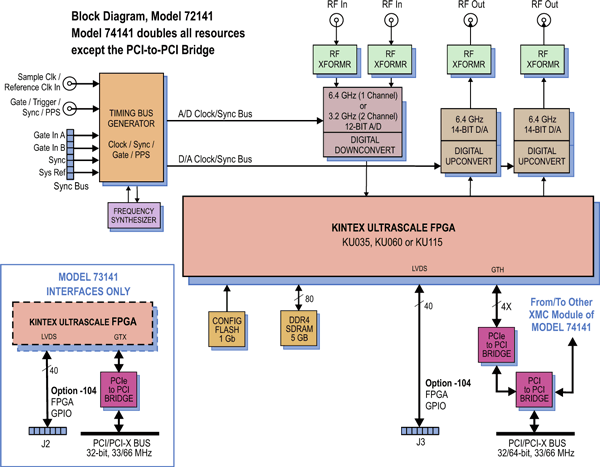

Model 72141 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Pricing and Availability

For the latest pricing, delivery and available options, please fill out this form and your request will be delivered to the appropriate department. To learn more about our products or to discuss your specific application please email our sales department at sales@pentek.com, contact your local representative or Pentek directly:

Mario Schiavone
Sales Director
Pentek, Inc.
One Park Way
Upper Saddle River, NJ 07458
USA
Tel: +1 (201) 818-5900
Fax: +1 (201) 818-5904
sales@pentek.com
Map + Directions

Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

A complete set of user manuals is provided in HTML format. Access to detailed documentation of the IP Core modules and their programmable registers is only available in the HTML version of the operating manual. Instructions for getting the HTML version of the user manuals is provided in the User Manual Library document listed below.

Part No.
Type
Description
Revision/Date
Contact Pentek
For Manual
Model 4811 Navigator FDK (FPGA Design Kit) for Model 72141
Contact Pentek
For Manual
Model 4814 Navigator BSP (Board Support Package) for Linux for Model 72141
Contact Pentek
For Manual
Model 4815 Navigator BSP (Board Support Package) for Windows for Model 72141

Software Products - ( top )

Model
Option
Description
4811 141 Navigator FDK (FPGA Design Kit)
4814 141 Navigator BSP (Board Support Package) for Linux
4815 141 Navigator BSP (Board Support Package) for Windows
