Model 7190 Multifrequency Clock Synthesizer - PMC

Request a Quote

Block Diagram

Datasheet

Manuals

Software

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Simultaneous synthesis of up to 5 different clocks
  • 8 SMC clock outputs
  • Ideal for A/D and D/A converter clock sources
  • Typical phase noise: -125 dBc/Hz @ 1 kHz offset
  • All clocks are phase-locked to input reference signal
  • Input reference frequency of 5 or 10 MHz
  • Four quad VCXOs allow selection from 16 different base frequencies
  • Output clocks of 1, 2, 4, 8, or 16 submultiples of VCXO base frequencies
  • Output clock frequencies between 50 and 500 MHz
  • Control and status via PCI bus interface



Request a Quote

Model 7190

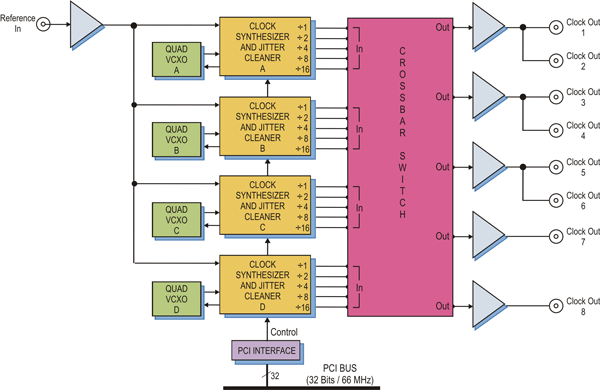

Model 7190 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Pricing and Availability

For the latest pricing, delivery and available options, please fill out this form and your request will be delivered to the appropriate department. To learn more about our products or to discuss your specific application please contact our sales department at SDL-sales@mrcy.com, 201-818-5900 or contact your local representative.


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
800.71900 Operating Manual Model 7190 Multifrequency Clock Synthesizer PMC Module A (5/18/2010)
801.71901 Programmer's Reference ReadyFlow Board Support Libraries for Model 7190 1.0 (2/8/2024)
815.71900 User's Guide Model 4995A Option 190 Windows ReadyFlow BSP for Model 7190 1.0 (5/29/2012)
816.71900 User's Guide Model 4994A Option 190 Linux ReadyFlow BSP for Model 7190 1.0 (5/29/2012)

Software Products - ( top )

Model
Option
Description
4994A 190 ReadyFlow Board Support Packages (BSPs) for Linux
4995A 190 ReadyFlow Board Support Packages (BSPs) for Windows
