Model 71624 Adaptive Relay, Virtex-6 FPGA - XMC

Please contact Pentek for availability.

Block Diagram

Datasheet

Manuals

Development Systems

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Modifies 34 IF signals between input and output
  • Up to 80 MHz IF bandwidth
  • Two 200 MHz 16-bit A/Ds
  • Two 800 MHz 16-bit D/As
  • 34 DDCs and 34 DUCs (digital downconverters and digital upconverters)
  • Signal drop/add/replace
  • Frequency shifting and hopping
  • Amplitude boost and attenutation
  • PCI Express Gen 1: x4 or x8



Model 71624

Cobalt Xilinx Virtex-6
RoHS compliant lead-free products available

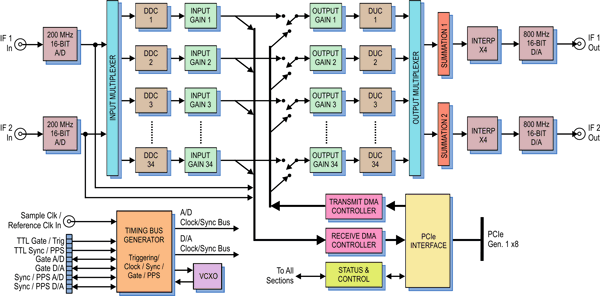

Model 71624 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
800.71601 Addendum Model 716xx Battery Installation 1.1 (12/24/2013)
800.71603 Addendum Model 716xx Reprogram FPGA from FLASH 1.0 (1/23/2012)
800.71620 Operating Manual Model 71620 3-Channel A/D and 2-channel D/A Cobalt Family XMC Module 2.14 (12/27/2017)
800.71624 Addendum Model 71624 3-Ch A/D, 2-Ch D/A, Adaptive Relay, XMC Module 0.1 (12/5/2014)
801.71620 Programmer's Reference ReadyFlow Board Support Libraries for Models 71620, 71621, and 71624 3.0 (4/1/2016)
809.7x620 Supplemental Manual Vendor Data Sheets for Model 7x620 Series Operating Manuals 1.0 (1/16/2012)
815.71620 User's Guide Model 4995A Option 162/62x/172/721 Windows ReadyFlow BSP for 7162x, 7172x 4.3A (10/3/2017)
816.71620 User's Guide Model 4994A Option 162/62x/172/72x Linux ReadyFlow BSP for 7162x, 7172x 4.3 (5/9/2016)
820.71624 User's Guide Getting Started Guide for Model 71624 1.1 (6/19/2015)
