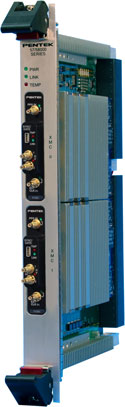

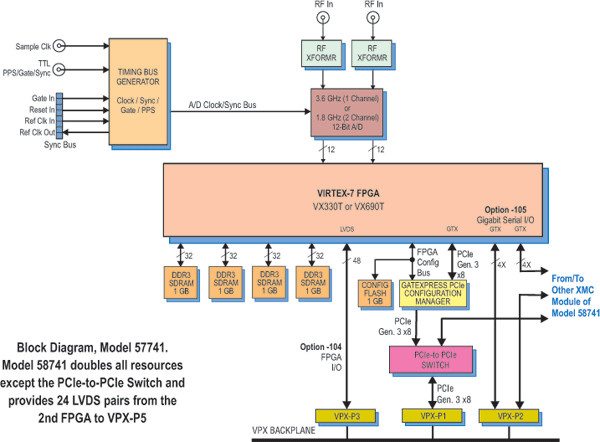

Model 58741 2-Channel 3.6 GHz or 4-Channel 1.8 GHz 12-bit A/D with DDC - 6U VPX

Request a Quote Block Diagram Datasheet Manuals Software Development Systems Literature Life Cycle Management Ordering & Warranty Catalogs

Supports Xilinx Virtex-7 VXT FPGAs GateXpress supports dynamic FPGA reconfiguration across PCIe One or two 1-channel mode with 3.6 GHz, 12-bit A/Ds Two or four 2-channel mode with 1.8 GHz, 12-bit A/Ds Programmable one- or two-channel DDCs (Digital Downconverters) 4 or 8 GB of DDR3 SDRAM µSync clock/sync bus for multiboard synchronization PCI Express (Gen. 1, 2 & 3) interface up to x8 Optional user-configurable gigabit serial interface Optional LVDS connections to the Virtex-7 FPGA for custom I/O Ruggedized and conduction-cooled versions available Supports GateXpress® FPGA-PCIe Configuration Manager Synchronize up to twelve modules with Model 9192 System Synchronization and Distribution Amplifier- 1U Rack-mount Also available in the following form factors: Model 71741 - XMC Model 57741 - VPX 6U (single XMC) Model 52741 - VPX 3U (single XMC) Model 53741 - VPX 3U (single XMC with switch) Model 78741 - PCIe (single XMC) Model 72741 - cPCI 6U (single XMC) Model 74741 - cPCI 6U (dual XMC) Model 73741 - cPCI 3U (single XMC) Model 56741 - AMC (single XMC) See comparable Jade Xilinx Kintex UltraScale FPGA Module: Model 58841 Please refer to the product datasheet for Installed FPGA IP Module details

Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

• Searching for an instruction manual or product datasheet? Request it here.
