Model 53720 3-Channel 200 MHz A/D and 2-Channel 800 MHz D/A with Virtex-7 FPGA - 3U VPX

This product is no longer available. Please see Model 52720.

Block Diagram

Datasheet

Manuals

Development Systems

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Complete radar and software radio interface solution
  • Supports Xilinx Virtex-7 VXT FPGAs
  • GateXpress supports dynamic FPGA reconfiguration across PCIe
  • Three 200 MHz 16-bit A/Ds
  • One digital upconverter
  • Two 800 MHz 16-bit D/As
  • 4 GB of DDR3 SDRAM
  • Sample clock synchronization to an external system reference
  • LVPECL clock/sync bus for multiboard synchronization
  • PCI Express (Gen. 1 and 2) interface up to x8
  • Optional user-configurable gigabit serial interface
  • Optional LVDS connections to the Virtex-7 FPGA for custom I/O
  • 3U VPX form factor provides a compact, rugged platform
  • Compatible with several VITA standards including: VITA-46, VITA-48 and VITA-65 (OpenVPX™ System Specification)
  • Ruggedized and conduction-cooled versions available



Model 53720

Onyx Xilinx Virtex-7

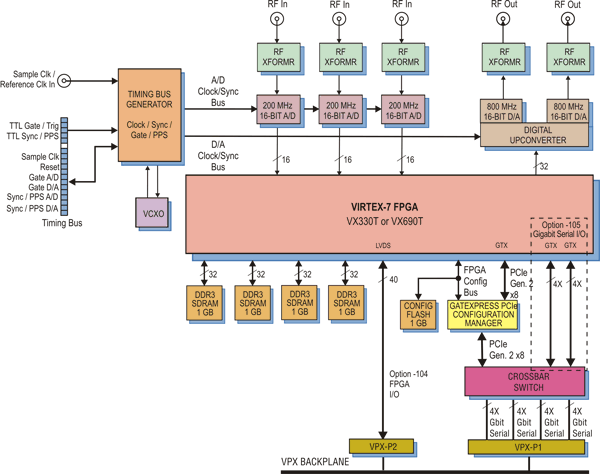

Model 53720 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
800.53720 Installation Guide Model 53720 3-Channel A/D and 2-channel D/A Onyx Family VPX Module 1.2 (9/15/2014)
800.71720 Operating Manual Model 71720 3-Channel A/D and 2-channel D/A Onyx Family XMC Module 1.11 (5/22/2017)
801.71720 Programmer's Reference ReadyFlow Board Support Libraries for Models 71720, 71721, and 3312 3.2 (4/13/2016)
809.7x720 Supplemental Manual Vendor Data Sheets for Model 7x720 Series Operating Manuals 1.1 (4/13/2014)
815.71620 User's Guide Model 4995A Option 162/62x/172/721 Windows ReadyFlow BSP for 7162x, 7172x 4.3A (10/3/2017)
816.71620 User's Guide Model 4994A Option 162/62x/172/72x Linux ReadyFlow BSP for 7162x, 7172x 4.3 (5/9/2016)
820.53720 User's Guide Getting Started Guide for Model 53720 2.3 (5/2/2016)
