Model 53131 8-Channel 250 MHz A/D with DDC, Kintex UltraScale FPGA - 3U VPX

This product is no longer available. Please see Model 52131 or 54131.

Block Diagram

Datasheet

Manuals

Development Systems

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Ideal radar and software radio interface solution
  • Supports Xilinx Kintex UltraScale FPGAs
  • Eight 250 MHz 16-bit A/Ds
  • Eight multiband DDCs (digital downconverters)
  • 5 GB of DDR4 SDRAM
  • Sample clock synchronization to an external system reference
  • LVPECL clock/sync bus for multimodule synchronization
  • PCI Express (Gen. 1 & 2) interface up to x8
  • Optional LVDS and gigabit serial connections to the FPGA for custom I/O
  • Compatible with several VITA standards including: VITA-46, VITA-48 and VITA-65 (OpenVPX™ System Specification)
  • Ruggedized and conduction-cooled versions available



Model 53131

Jade Xilinx Kintex UltraScale FPGA Family Brochure
Jade Xilinx UltraScale

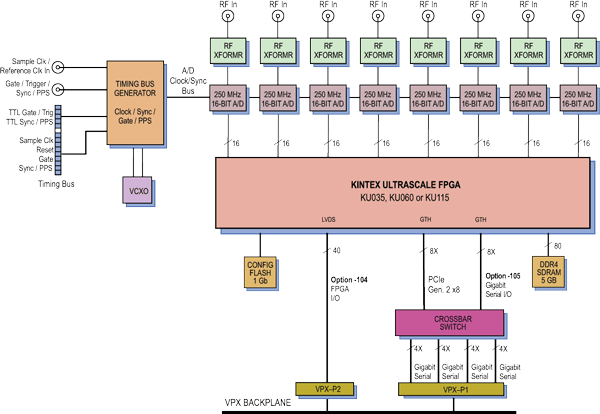

Model 53131 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

A complete set of user manuals is provided in HTML format. Access to detailed documentation of the IP Core modules and their programmable registers is only available in the HTML version of the operating manual. Instructions for getting the HTML version of the user manuals is provided in the User Manual Library document listed below.

Part No.
Type
Description
Revision/Date
800.71131 Operating Manual Model 71131 8-Channel 250 MHz A/D Jade Family XMC Module 1.4 (3/27/2018)
