Model 52721 3-Ch 200 MHz A/D with DDC & 2-Ch 800 MHz D/A with DUC, Virtex-7 FPGA - 3U VPX

Request a Quote

Block Diagram

Datasheet

Manuals

Software

Development Systems

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Supports Xilinx Virtex-7 VXT FPGAs
  • GateXpress supports dynamic FPGA reconfiguration across PCIe
  • Three 200 MHz 16-bit A/Ds
  • Three multiband DDCs
  • Two 800 MHz 16-bit D/As
  • One DUC (digital upconverter)
  • Multiboard programmable beamformer
  • 4 GB of DDR3 SDRAM
  • Sample clock synchronization to an external system reference
  • LVPECL clock/sync bus for multiboard synchronization
  • PCI Express (Gen. 1, 2 & 3) interface up to x4
  • Optional LVDS connections to the Virtex-7 FPGA for custom I/O
  • 3U VPX form factor provides a compact, rugged platform
  • Compatible with several VITA standards including: VITA-46, VITA-48 and VITA-65 (OpenVPX™ System Specification)
  • Ruggedized and conduction-cooled versions available
  • See comparable Jade Xilinx Kintex UltraScale FPGA Module: Model 52821



Request a Quote

Model 52721

Onyx Xilinx Virtex-7

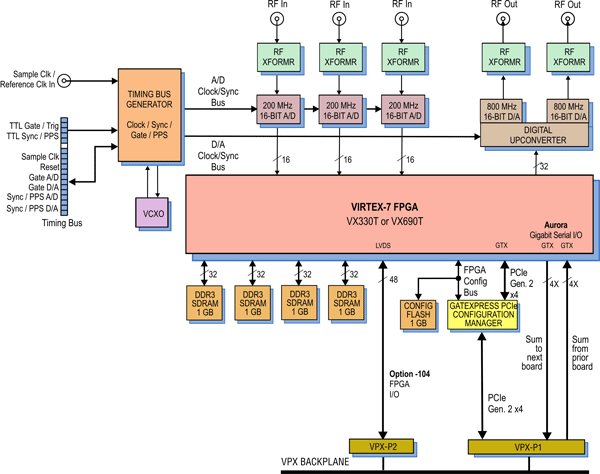

Model 52721 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Pricing and Availability

For the latest pricing, delivery and available options, please fill out this form and your request will be delivered to the appropriate department. To learn more about our products or to discuss your specific application please contact our sales department at SDL-sales@mrcy.com, 201-818-5900 or contact your local representative.


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
800.52721 Installation Guide Model 52721 3-Ch A/D w/ 3 DDCs, 2-Ch D/A w/Interp Onyx Family VPX Module 2.0 (6/18/2015)
800.71720 Operating Manual Model 71720 3-Channel A/D and 2-channel D/A Onyx Family XMC Module 1.11 (5/22/2017)
800.71721 Addendum Model 71721 3-Ch A/D, 2-Ch D/A w/ 3 DDCs & Interp, Onyx Family XMC Module 1.2 (7/7/2015)
801.71720 Programmer's Reference ReadyFlow Board Support Libraries for Models 71720, 71721, and 3312 3.2 (4/13/2016)
809.7x720 Supplemental Manual Vendor Data Sheets for Model 7x720 Series Operating Manuals 1.1 (4/13/2014)
815.71620 User's Guide Model 4995A Option 162/62x/172/721 Windows ReadyFlow BSP for 7162x, 7172x 4.3A (10/3/2017)
816.71620 User's Guide Model 4994A Option 162/62x/172/72x Linux ReadyFlow BSP for 7162x, 7172x 4.3 (5/9/2016)
820.52721 User's Guide Getting Started Guide for Model 52721 1.4 (4/20/2016)
Contact Pentek
For Manual
Model 4953 GateFlow FPGA Design Kit for Pentek Modules for Model 52721
Contact Pentek
For Manual
Model 4996A ReadyFlow Board Support Packages (BSPs) for VxWorks for Model 52721

Software Products - ( top )

Model
Option
Description
4953 721 GateFlow FPGA Design Kit for Pentek Modules
4994A 721 ReadyFlow Board Support Packages (BSPs) for Linux
4995A 721 ReadyFlow Board Support Packages (BSPs) for Windows
4996A 721 ReadyFlow Board Support Packages (BSPs) for VxWorks
