Model 52641 1-Channel 3.6 GHz or 2-Channel 1.8 GHz 12-bit A/D with DDC - 3U VPX

Request a Quote

Block Diagram

Datasheet

Manuals

Software

Development Systems

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Ideal radar and software radio interface solution
  • One-channel mode with 3.6 GHz, 12-bit A/D
  • Two-channel mode with 1.8 GHz, 12-bit A/Ds
  • 2 GB of DDR3 SDRAM
  • Programmable one- or two- channel DDC (Digital Downconverter)
  • PCI Express (Gen. 1 & 2) interface x8 wide
  • Sync bus for multimodule synchronization
  • Optional LVDS connections to the Virtex-6 FPGA for custom I/O
  • 3U VPX form factor provides a compact, rugged platform
  • Compatible with several VITA standards including: VITA-46, VITA-48 AND VITA-65 (OpenVPX™ System Specification)
  • Ruggedized and conduction-cooled versions available
  • See comparable Jade Xilinx Kintex UltraScale FPGA Module: Model 52841
  • See comparable Onyx Xilinx Virtex-7 FPGA Module: Model 52741



Request a Quote

Model 52641

Cobalt Xilinx Virtex-6

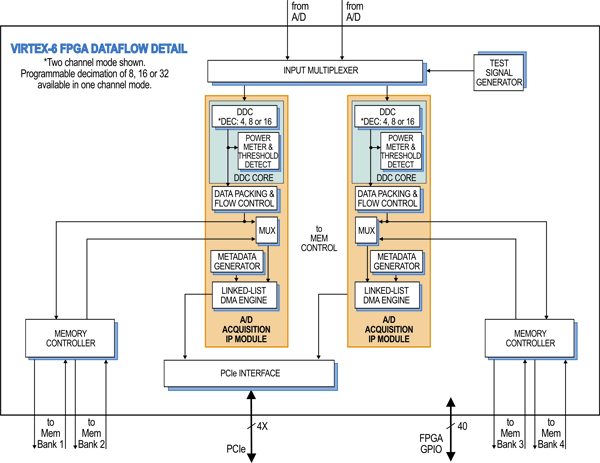

Model 52641 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Pricing and Availability

For the latest pricing, delivery and available options, please fill out this form and your request will be delivered to the appropriate department. To learn more about our products or to discuss your specific application please contact our sales department at SDL-sales@mrcy.com, 201-818-5900 or contact your local representative.


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
800.52641 Installation Guide Model 52641 2-Ch 1.5 GHz (1-ch 3 GHz) A/D w/DDC Cobalt Family VPX board 1.7 (6/9/2016)
800.71601 Addendum Model 716xx Battery Installation 1.1 (12/24/2013)
800.71603 Addendum Model 716xx Reprogram FPGA from FLASH 1.0 (1/23/2012)
800.71640 Operating Manual Model 71640 2-Ch 1.5 GHz (1-ch 3 GHz) A/D Cobalt Family XMC Module 3.9 (1/30/2024)
800.71641 Addendum Model 71641 2-Ch 1.5 GHz (1-ch 3 GHz) A/D w/DDC 1.5 (9/28/2015)
801.71640 Programmer's Reference ReadyFlow Board Support Libraries for Models 71640 and 71641 3.0 (9/23/2015)
809.7x640 Supplemental Manual Vendor Data Sheets for Model 7x640 Series Operating Manuals 1.1 (6/1/2012)
815.71640 User's Guide Model 4995A Option 164/641/741 Windows ReadyFlow BSP - 71640, 71641, 71741 4.1A (10/10/2017)
816.71640 User's Guide Model 4994A Option 164/641/741 Linux ReadyFlow BSP for 71640, 71641, 71741 4.3 (11/6/2015)
820.52641 User's Guide Getting Started Guide for Model 52641 2.6 (6/15/2015)
Contact Pentek
For Manual
Model 4996A ReadyFlow Board Support Packages (BSPs) for VxWorks for Model 52641

Software Products - ( top )

Model
Option
Description
4994A 641 ReadyFlow Board Support Packages (BSPs) for Linux
4995A 641 ReadyFlow Board Support Packages (BSPs) for Windows
4996A 641 ReadyFlow Board Support Packages (BSPs) for VxWorks
