Model 52611 Quad Serial FPDP Interface with Virtex-6 FPGA - 3U VPX

Request a Quote

Block Diagram

Datasheet

Manuals

Software

Development Systems

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Complete serial FPDP solution
  • Fully compliant with VITA 17.1 specification
  • Fiber optic or copper serial interfaces
  • Up to 2 GB of DDR3 SDRAM
  • PCI Express interface up to x4
  • LVDS connections to the Virtex-6 FPGA for custom I/O
  • 3U VPX form factors provides a compact, rugged platform
  • Compatible with several VITA standards including: VITA-46, VITA-48 and VITA-65 (OpenVPX™ System Specification)
  • Ruggedized and conduction-cooled versions available



Request a Quote

Model 52611

Cobalt Xilinx Virtex-6

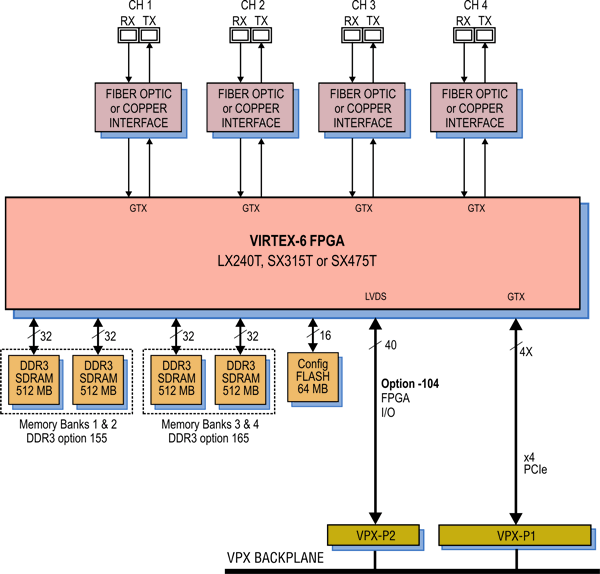

Model 52611 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Pricing and Availability

For the latest pricing, delivery and available options, please fill out this form and your request will be delivered to the appropriate department. To learn more about our products or to discuss your specific application please contact our sales department at SDL-sales@mrcy.com, 201-818-5900 or contact your local representative.


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
800.52611 Installation Guide Model 52611 Quad Serial FPDP Interface Cobalt Family VPX Board 1.7 (7/17/2015)
800.71601 Addendum Model 716xx Battery Installation 1.1 (12/24/2013)
800.71603 Addendum Model 716xx Reprogram FPGA from FLASH 1.0 (1/23/2012)
800.71611 Operating Manual Model 71611 Quad Serial FPDP Interface with Virtex6 FPGA Cobalt Family XMC 1.11 (7/17/2015)
801.71611 Programmer's Reference ReadyFlow Board Support Libraries for Models 71611 and 7811 2.1A (4/1/2021)
809.7x611 Supplemental Manual Vendor Data Sheets for Model 7x611 Series Operating Manuals 1.0 (4/14/2014)
815.71611 User's Guide Model 4995A Option 611/811 Windows ReadyFlow BSP for Model 71611 and 7811 2.1 (7/28/2020)
816.71611 User's Guide Model 4994A Option 611/811 Linux ReadyFlow BSP for Model 71611 and 7811 2.1A (2/5/2016)
820.52611 User's Guide Getting Started Guide for Model 52611 2.6 (6/16/2015)
Contact Pentek
For Manual
Model 4953 GateFlow FPGA Design Kit for Pentek Modules for Model 52611
Contact Pentek
For Manual
Model 4996A ReadyFlow Board Support Packages (BSPs) for VxWorks for Model 52611

Software Products - ( top )

Model
Option
Description
4953 611 GateFlow FPGA Design Kit for Pentek Modules
4994A 611 ReadyFlow Board Support Packages (BSPs) for Linux
4995A 611 ReadyFlow Board Support Packages (BSPs) for Windows
4996A 611 ReadyFlow Board Support Packages (BSPs) for VxWorks
