Talon RTR 2747 500 MS/sec RF/IF Rugged Rackmount Recorder

Please contact Pentek for availability.

Block Diagram

Datasheet

Manuals

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Designed to operate under conditions of shock and vibration
  • 4 U 19 inch industrial rugged rackmount PC server chassis
  • Windows® 7 Professional workstation with high performance Intel® Core™ i7 processor
  • Shock- and vibration-resistant SSDs perform well in vehicles, ships and aircraft
  • Recording and playback of IF signals up to 700 MHz
  • Signal bandwidths to 160 MHz
  • 500 MHz 12-bit A/Ds or 400 MHz 14-bit A/Ds
  • 800 MHz 16-bit D/As
  • Real-time aggregate recording rates up to 5 GB/sec
  • Up to 38.4 terabytes of storage to NTFS RAID disk array
  • RAID levels 0, 1, 5, 6, 10 and 50
  • NTFS file format
  • SystemFlow® GUI with signal viewer analysis tool
  • C-callable API for integration of recorder into application
  • File headers include time stamping and recording parameters
  • Optional GPS time and position stamping



Model 2747

Talon RTR Rugged Recorder
SystemFlow Software for Talon Recording Systems
ArchiTek FPGA Development Suite

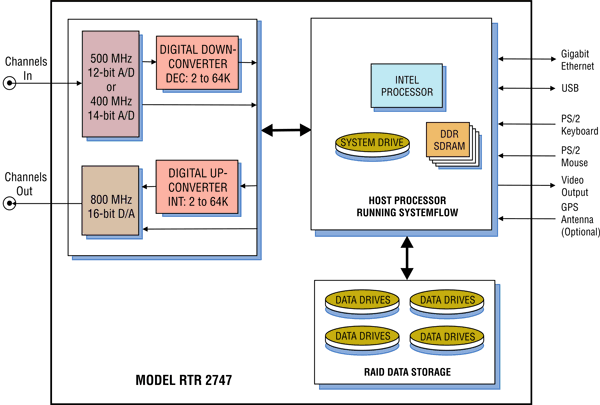

Model 2747 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
800.27400 User's Guide Talon RTR 2740 - Data Offload System 1.0 (11/11/2016)
800.27470 Operating Manual Talon RTR 2747 - 500 MS/sec RF/IF Rugged Rackmount Recorder 2.1 (3/18/2015)
800.27xx2 User's Guide SystemFlow API User's Development Guide for Talon Recording Systems 3.10 (12/28/2017)
800.27xx4 User's Guide SystemFlow Simulator 2.1 (7/23/2018)
800.27xx5 User's Guide Telnet Facility for Talon Recording Systems 2.4 (3/3/2022)
