Model 4243 2-Channel 18-bit 200 kHz A/D and D/A Converter

Please contact Pentek for availability.

Block Diagram

Datasheet

Manuals

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Dual-channel
  • 18-bit resolution for both A/D and D/A
  • Sampling rate programmable from 153 Hz to 200 kHz
  • Input anti-aliasing and output smoothing filters programmable from 1 kHz to 20 kHz; may be bypassed
  • 2 ksample input/output FIFO, expandable to 16 ksample

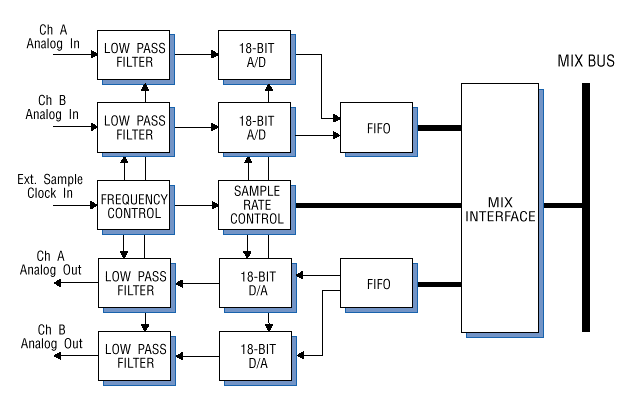

Model 4243 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
800.00001 Supplemental Manual VMEBus MIX Tutorial A.1 (12/21/2010)
800.00300 Installation Guide MIX Stack Assembly Quick Reference A (2/9/2000)
800.42430 Operating Manual Model 4242 & 4243 Single and Dual Channel Filtered A/D - D/A Converter MIX F.2 (5/27/1999)
800.42435 Addendum Option 012, 013 FIFO Block Transfer addresses & Extra BNC Connector A (12/10/1998)
